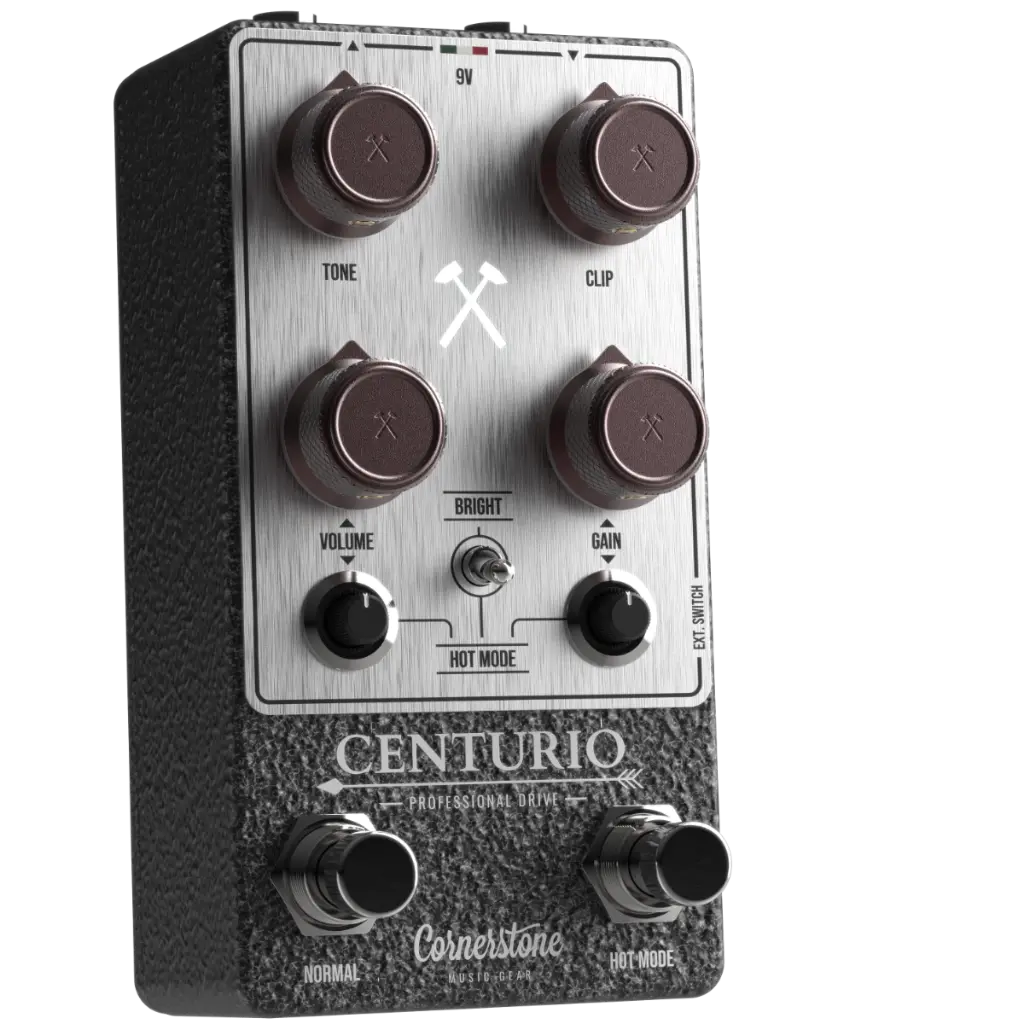

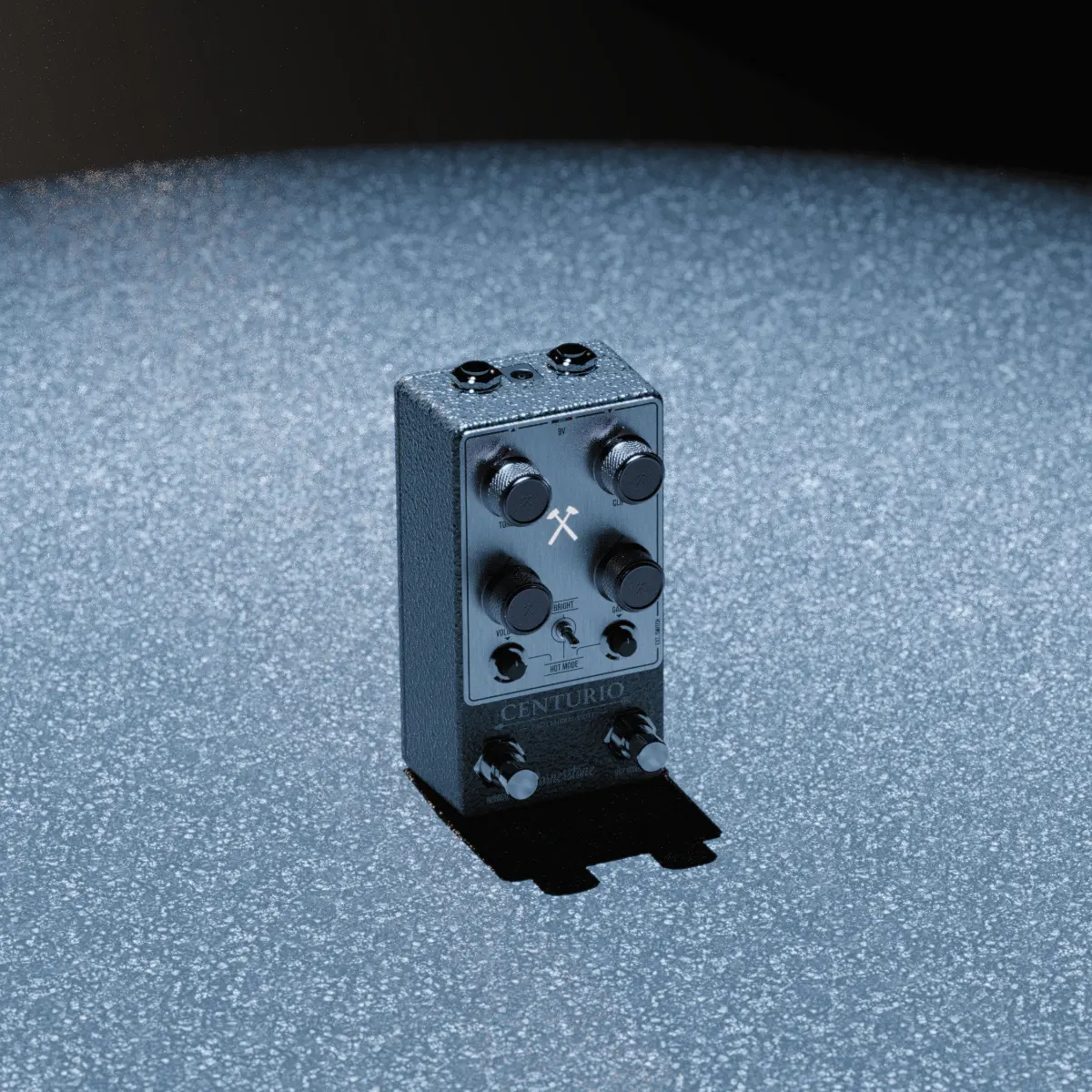

Cornerstone Centurio Overdrive – Reimagining the Legendary Transparent Klon Sound
The Cornerstone Centurio takes the highly coveted, transparent Klon-inspired overdrive circuit to the next level by introducing an innovative dual-channel architecture with fully independent Gain and Volume controls. Engineered for tone-conscious guitarists who require their core sound to remain unaltered yet dynamically enhanced, the Centurio delivers expressive boutique overdrive with remarkable clarity, touch-sensitive response, and headroom.
Key Highlights for Your Signal Chain
- Dual-Channel Layout: Two completely separate Gain and Volume stages for seamless rhythm and lead switching.
- Dynamic Hot Mode: Dedicated secondary circuit providing an additional gain and volume boost (or cut) for solo performance.
- Interactive Clip Control: Continuous fine-tuning of the clipping structure, altering compression and harmonic saturation.
- High-Frequency Bright Switch: Instant top-end presence adjustment to match different guitar pickups and amplifier voicings.
- External Remote Input: 1/4-inch jack input for external footswitch control, ideal for advanced pedalboard integration.
- Professional Impedance Matching: Features a high 1 MOhm input impedance and 100 Ohm output impedance for pristine signal fidelity.
Technical Data and Hardware Specifications
| Feature / Component | Technical Specification |
|---|---|
| Type | Transparent Boutique Klon-style Overdrive |
| Channels / Modes | 2 independent channels (Normal and Hot Mode) |
| Controls | Tone, Clip, Volume, Gain, Hot Vol, Hot Gain |
| Switches | Normal/Hot footswitch, Bright toggle switch |
| Special Features | Volume boost or volume cut capability in Hot Mode, variable clipping adjustment |

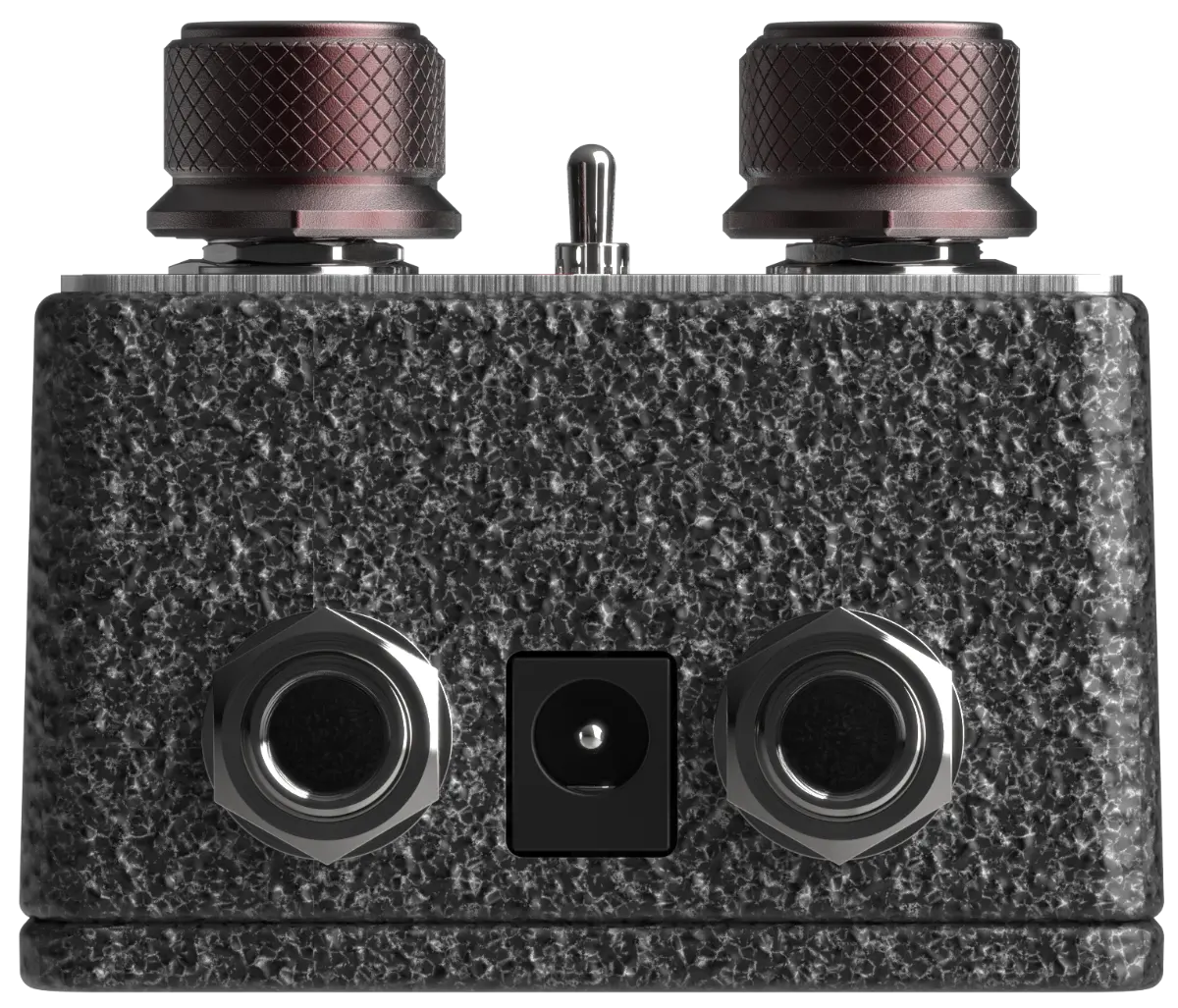

| Inputs | 1x 1/4" (6.35 mm) mono jack, 1x 1/4" (6.35 mm) external footswitch input |
| Outputs | 1x 1/4" (6.35 mm) mono jack |
| Input Impedance | 1 MOhm |
| Output Impedance | 100 Ohm |
| Power Supply | 9V DC Power Supply (Center Negative, not included) |
| Current Draw | 120 mA |
| Dimensions (W x D x H) | 122 x 67 x 39 mm |
| Weight | 500 g |
Expert Perspective: Why You Should Buy the Cornerstone Centurio
From a professional audio engineering and touring perspective, the Cornerstone Centurio solves the inherent limitations of traditional boutique overdrives. Where standard transparent boosts only offer a single set-and-forget sound, the Centurio provides two fully customizable gain structures. The addition of the JFET-style responsiveness and the sturdily buffered output ensures your signal integrity remains intact, even when driving extensive cable runs or heavy digital effects processors downstream.
Advanced Performance Engineering
Whether utilized as an always-on harmonic enhancer or a powerful solo booster for Blues, Rock, Fusion, or Ambient genres, this device adapts flawlessly to your playing dynamics. For session musicians and gear connoisseurs seeking ultimate tonal authority and multi-stage control without cluttering their pedalboard, to buy the Cornerstone Centurio is an investment in pure, uncompromising tone.
