Nobels ODR-1 X
Product information "ODR-1 X"
Overview

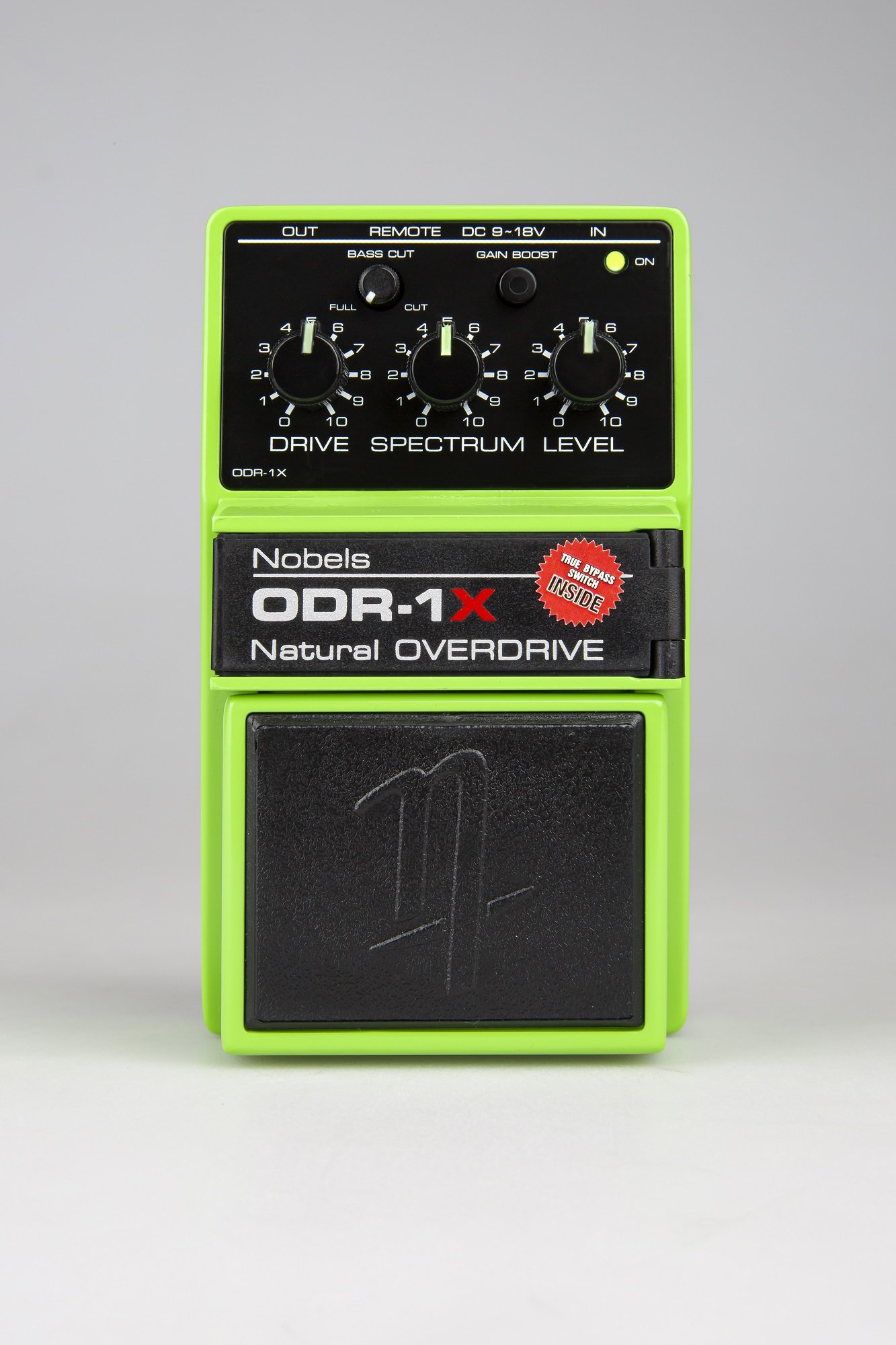

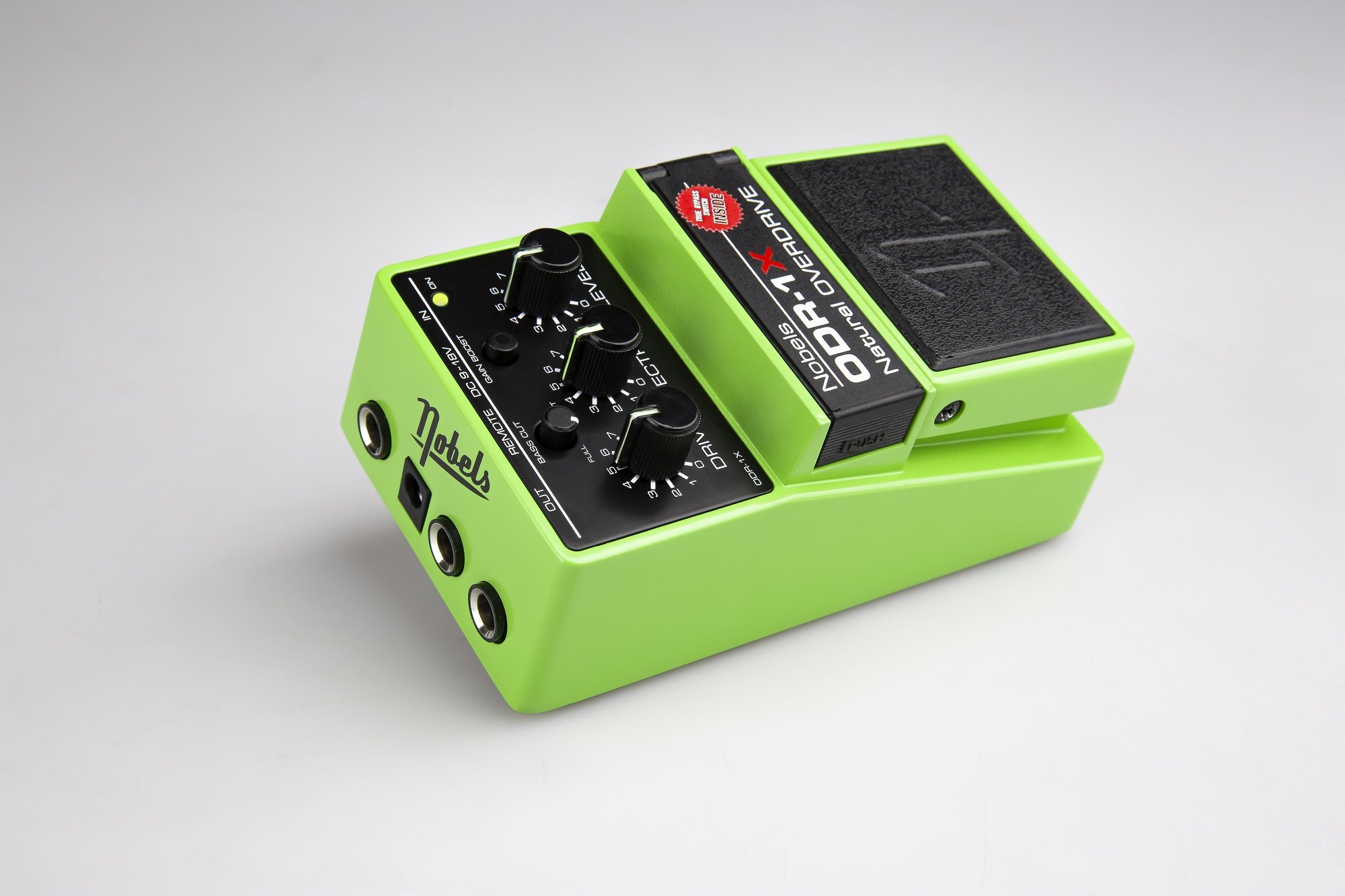

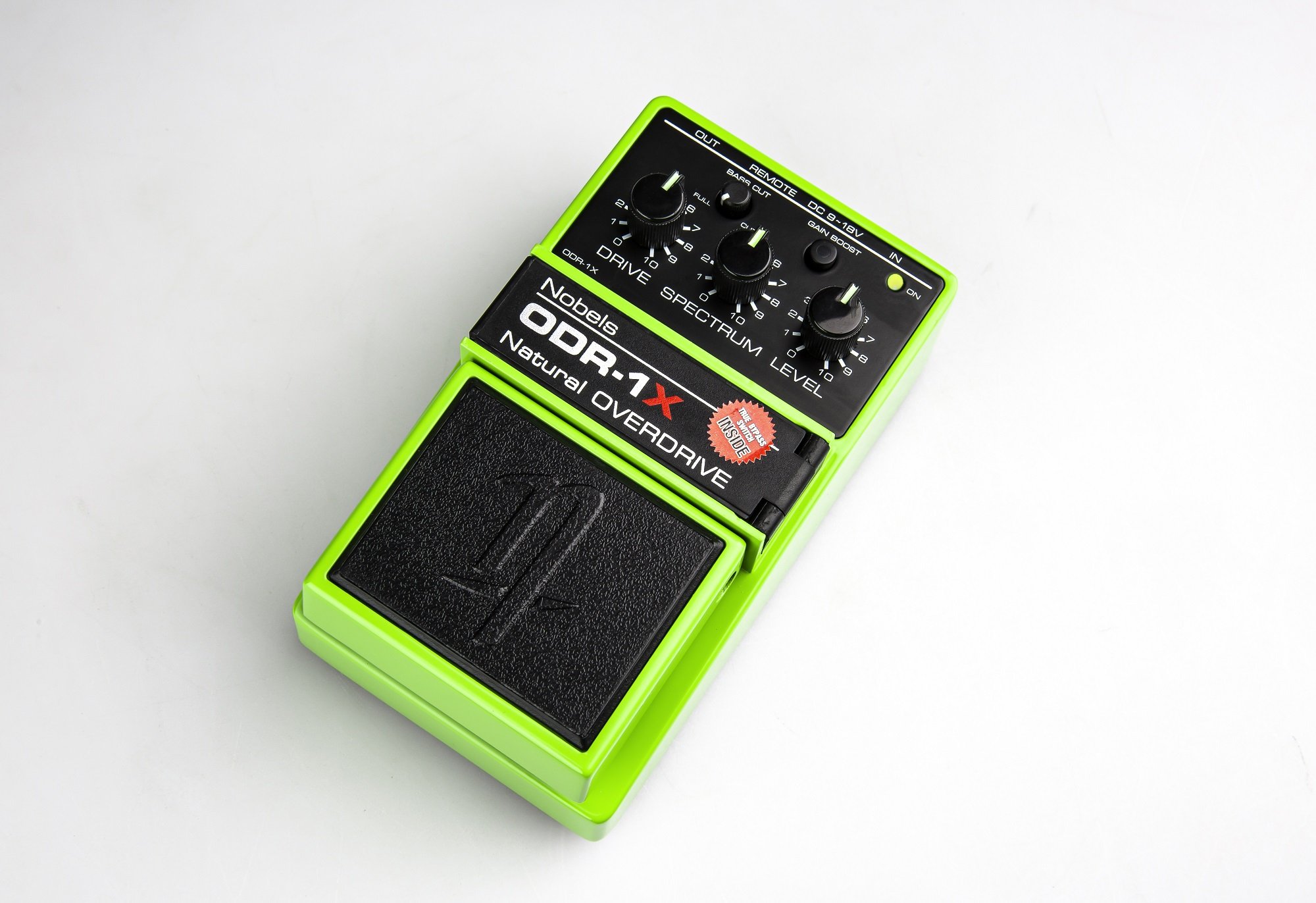

The Nobels ODR-1 X is the next generation of the legendary overdrive expanding the classic 90s vintage concept with modern features such as a bass cut control a switchable high gain boost and selectable true or buffered bypassFeatures
With remote controllable gain boost and on off mode the unique Spectrum dual filter EQ glow in the dark knobs and integrated Mounty P plates the ODR-1 X offers maximum flexibility transforming the pedal from natural overdrive to a powerful hard rock machineProduct Details
- Pedal type
- Analog overdrive pedal natural 90s vintage sound
- Bass cut control
- Adjusts low frequency response
- Remote jack
- Allows remote control of on off and gain boost
- Spectrum EQ
- Dual filter tone control boosts or cuts bass and treble simultaneously
- Bypass options
- Selectable true or buffered bypass
- Gain boost
- Switchable up to 29.5 dB with remote option
- Battery compartment
- Top mounted for quick access
- Glow in the Dark knobs
- Yes
- Mounty P plates
- 4 integrated fold out mounting plates
- Power supply
- 9 to 18 V DC adapter or 9 V battery optional
- Power plug
- 2.1 mm barrel connector center negative
- Power consumption
- Maximum 15 mA
- Input impedance
- Approx 1 MΩ
- Output impedance
- Approx 2.2 kΩ
- Max input level
- +6 dB
- Controls
- Drive Spectrum Level Bass Cut
- Switches
- On Off High Low Gain True Buffered Bypass
- Jacks
- DC input mono input remote stereo output
- LED indicators
- 1 green on off 1 red gain boost
- Dimensions
- 12.6 x 7.4 x 5.4 cm
- Weight
- 418 g
