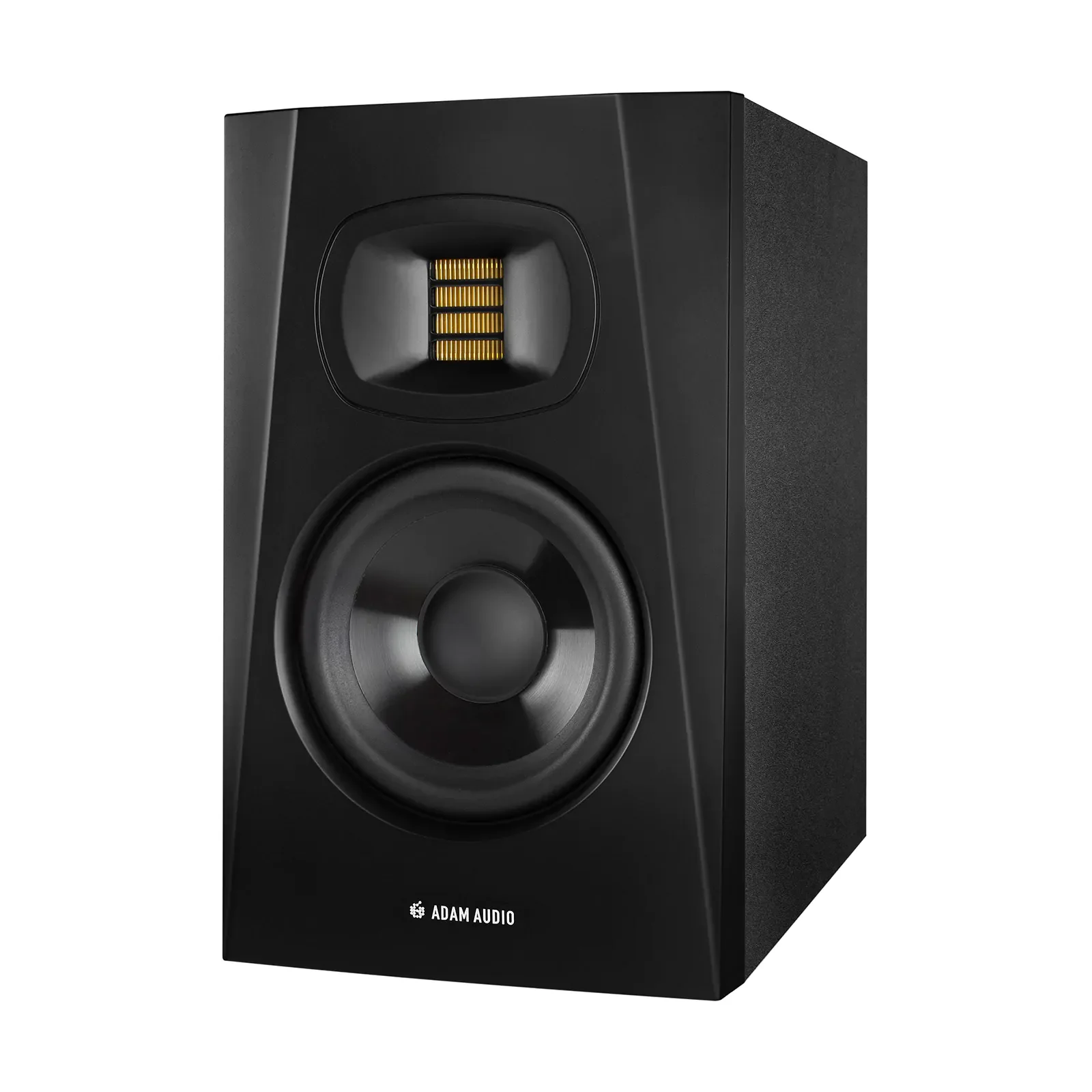

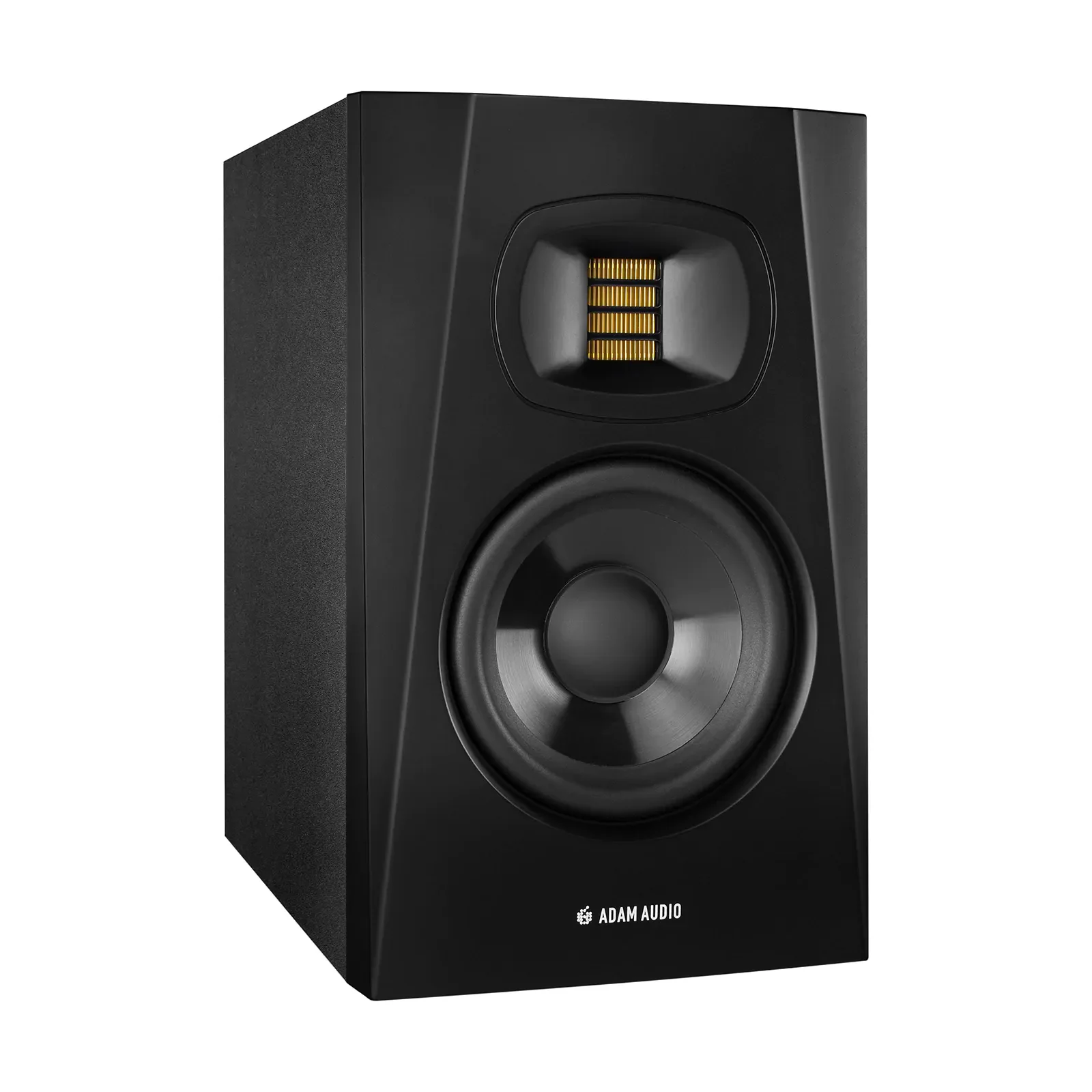

Adam Audio T5V – High-Resolution Monitoring on a Budget
The Adam Audio T5V is an active 2-way nearfield studio monitor designed to deliver professional-grade acoustic performance in a compact footprint. It features a 5" polypropylene woofer that provides bass extension down to 45 Hz, making it an excellent choice for music production, video post-production, and broadcast in smaller control rooms.
A standout feature is the 1,9" U-ART accelerated ribbon tweeter, which offers a pristine and extended high-frequency response of up to 25 kHz. The tweeter is paired with a precision waveguide that shares the same dispersion characteristics as the High-Frequency Propagation (HPS) waveguide found in Adam Audio's flagship S Series monitors. This creates a wide, uniform sweet spot, allowing you to move freely without losing accurate sonic imaging.
The T5V's cabinet features a small footprint with beveled edges and a rear-firing bass reflex port, facilitating easy placement in tight spaces. Internally, the monitor utilizes DSP-controlled crossovers and equalization. Power is delivered by high-efficiency Class-D amplifiers: 50 W for the woofer and 20 W for the U-ART tweeter, capable of reaching peak levels of 106 dB SPL per pair.
With balanced XLR and unbalanced RCA inputs, along with High-Shelf and Low-Shelf EQs (+/- 2 dB), the T5V can be easily integrated into any studio environment and tuned to compensate for room acoustics.
Key Features of the Adam Audio T5V
- U-ART Tweeter: Provides transparent high-end detail up to 25 kHz without ear fatigue.
- HPS Waveguide: Delivers consistent horizontal dispersion for a massive sweet spot.
- Bi-Amplified Power: 70W total Class-D power (50W LF / 20W HF) for impressive headroom.
- Acoustic Tuning: Onboard DSP-based filters to adjust the monitor to your listening environment.
Technical Specifications
| Feature | Specifications |
|---|---|
| Monitor Type | Active 2-Way Nearfield Monitor |
| Woofer | 5" Polypropylene (50 W Class-D) |
| Tweeter | 1.9" U-ART w/ HPS Waveguide (20 W Class-D) |
| Frequency Response | 45 Hz – 25 kHz (-6 dB) |
| Max. Peak SPL | ≥ 106 dB SPL @ 1 m (Per Pair) |
| Crossover Frequency | 3 kHz |

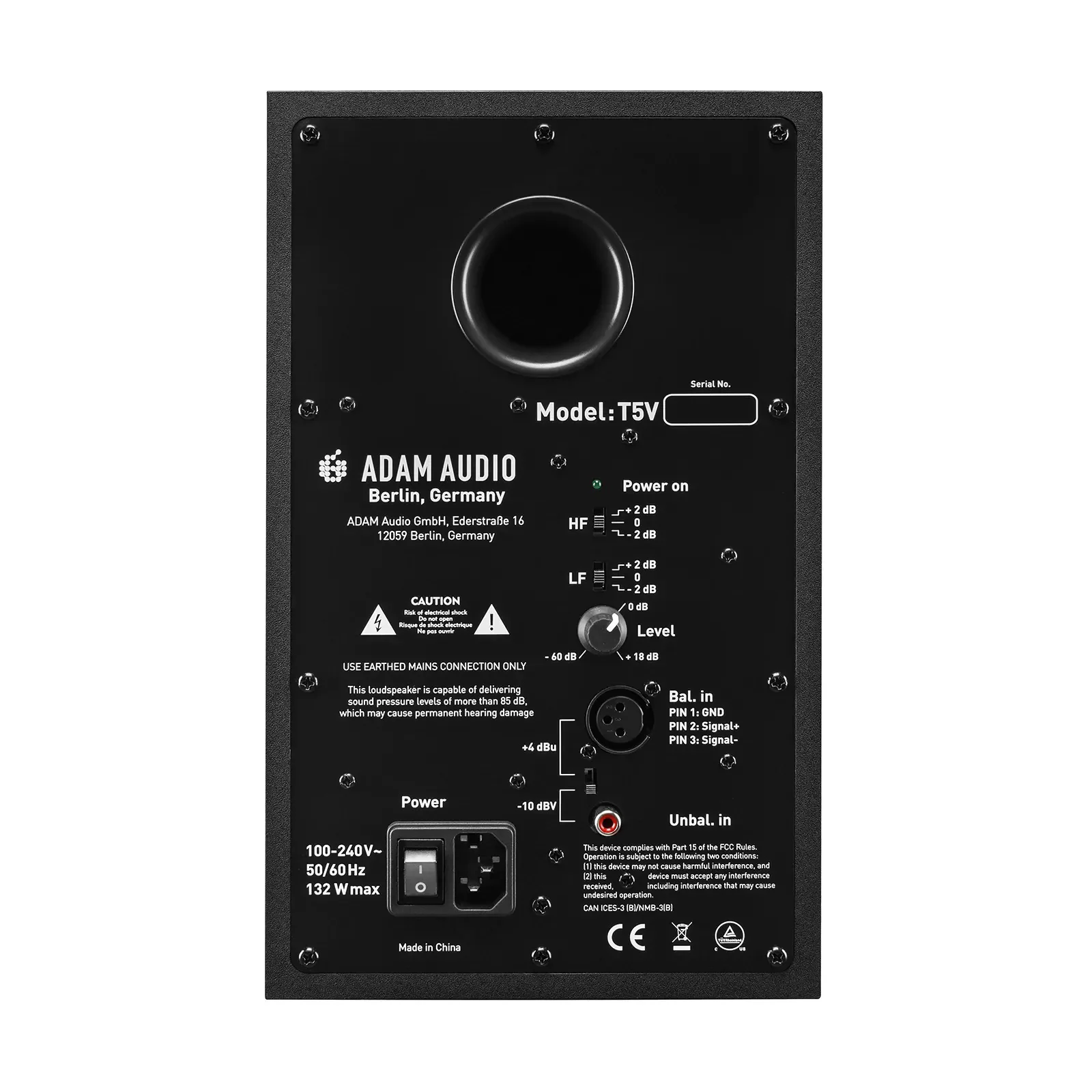

| Input Connectors | XLR (Balanced), RCA (Unbalanced) |
| Room EQ | High-Shelf & Low-Shelf (+/- 2 dB) |
| Enclosure | MDF with rear-firing bass reflex port |
| Dimensions (H x W x D) | 298 x 179 x 297 mm |
| Weight | 5.7 kg (Approx. 12.6 lbs) |
| Power Input | Universal Switch-mode (100–240 V) |
