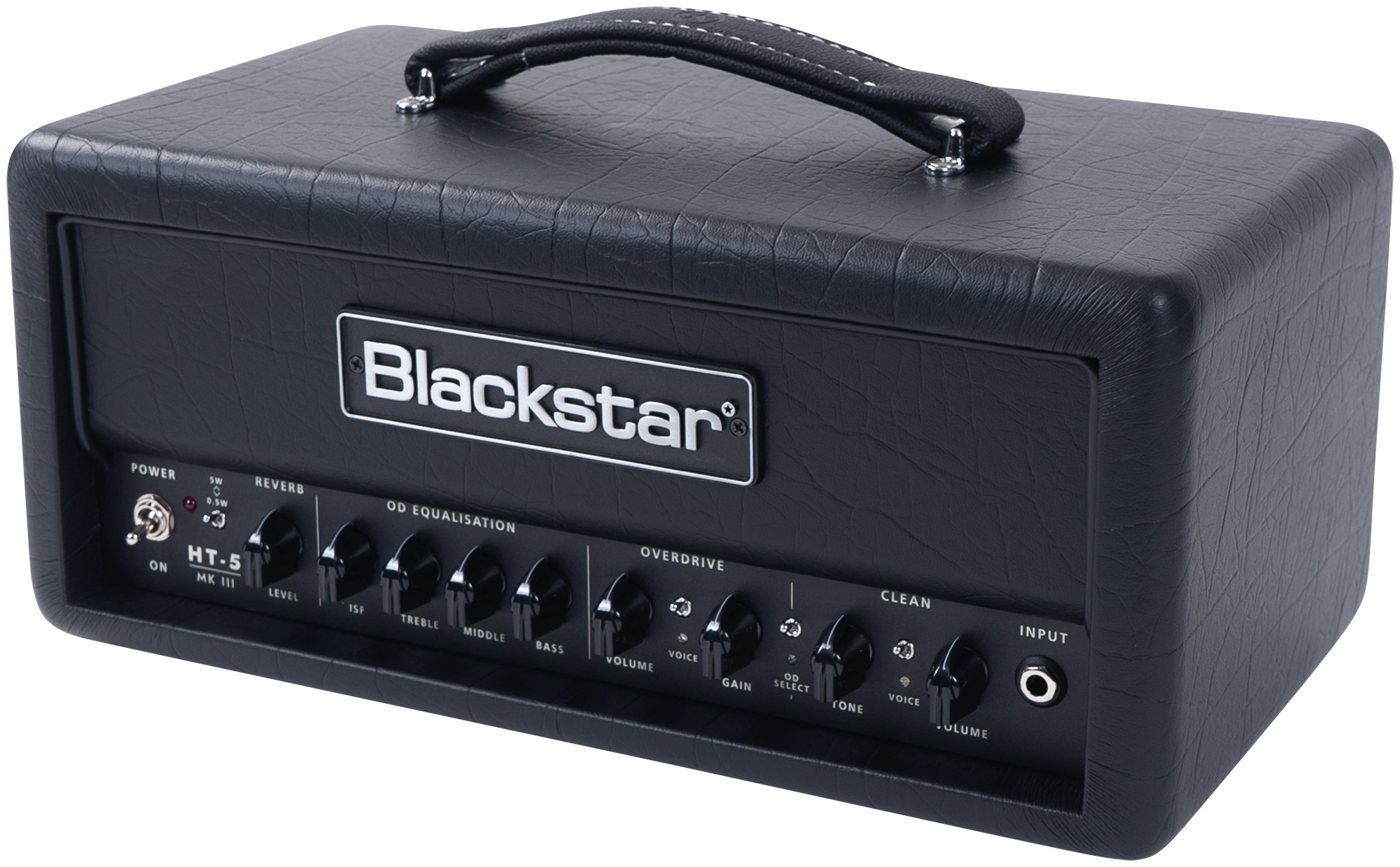

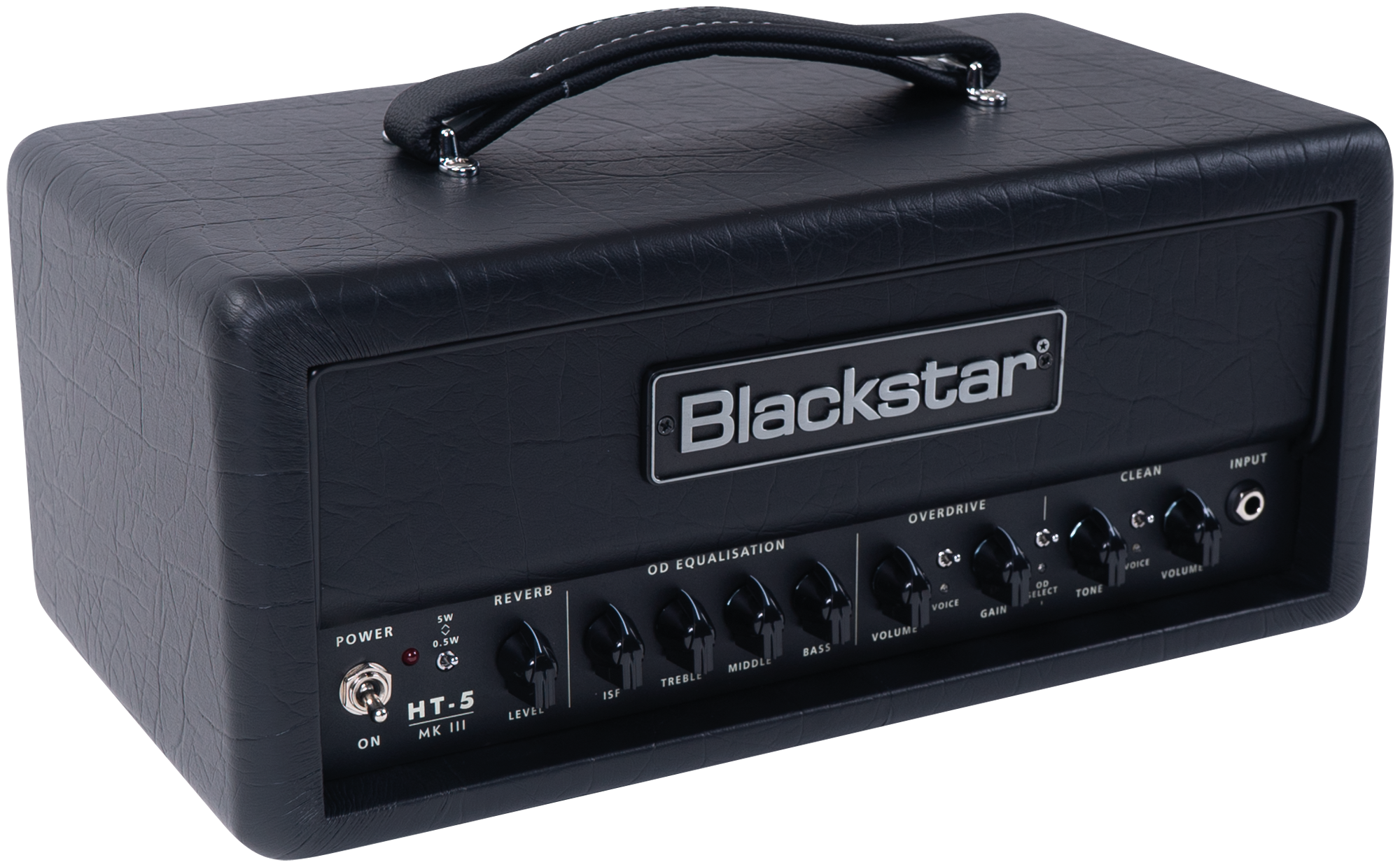

The Blackstar HT-5RH MK III is a highly advanced all-valve guitar amplifier head that masterfully bridges the gap between traditional organic tube tone and modern digital studio workflow. Driven by an ECC83 preamp valve and a specialized 12BH7 power amp tube, this compact head delivers authentic boutique response and dynamic breakdown. Featuring Blackstar's patented ISF tone matrix, an integrated 0.5-watt power attenuator, and the cutting-edge Cabrig DSP speaker simulator with a USB-C interface, the HT-5RH MK III is the ultimate performance engine for home practice, studio tracking, and silent direct recording.
Key Highlights for Guitarists and Professional Studio Environments
- Authentic Tube Design: Outfitted with an ECC83 valve in the preamp stage and a 12BH7 dual-triode valve in the power stage for rich harmonic compression at any volume.
- 4-Voice Sonic Versatility: Two footswitchable channels (Clean and Overdrive) are each equipped with a unique Voice switch, providing access to four distinct boutique circuit designs.
- Patented ISF Control: The Infinite Shape Feature allows you to seamlessly blend the entire tone stack architecture from an aggressive American boutique amp to a woody British classic.
- Onboard Power Attenuation: Drop the master output from 5 Watts down to 0.5 Watts to achieve organic power-tube saturation without disturbing the neighbors.
- Next-Generation Cabrig DSP: Advanced component-level speaker emulation hosting 100 selectable cabinet, microphone, and room configurations, with 3 hardware preset slots directly accessible on the fly.
- Direct Digital Recording I/O: Integrated high-speed USB-C audio port for direct multi-channel routing into your DAW alongside a professional balanced XLR DI output stage.
Technical Data and Product Specifications
| Feature / Component | Technical Details |
|---|---|
| Amplifier Class | All-valve / True tube guitar amplifier top head |
| RMS Power Rating | 5 Watts RMS (switchable down to 0.5 Watts via built-in power reduction circuit) |
| Valve Configuration | 1x ECC83 (Preamp Stage) / 1x 12BH7 (Power Amp Stage) |
| Channels | 2 independent channels (Clean, Overdrive) featuring 2 distinct voicings per channel |
| Front Panel Controls | Clean Volume, Clean Tone, Overdrive Gain, Overdrive Volume, Bass, Middle, Treble, ISF, Reverb Level |
| Hardware Switches | Clean Voice toggle, Overdrive Voice toggle, OD Select, 0.5W/5W Attenuator, Cabrig Preset switch, Effects Loop Level (+4dBV / -10dBV) |
| Spatial Onboard FX | Studio-grade digital Reverb with precise wet/dry mix control |
| Speaker Output Jacks | 3x 1/4" speaker outputs (supports dynamic 8-ohm and 16-ohm cabinet configurations) |

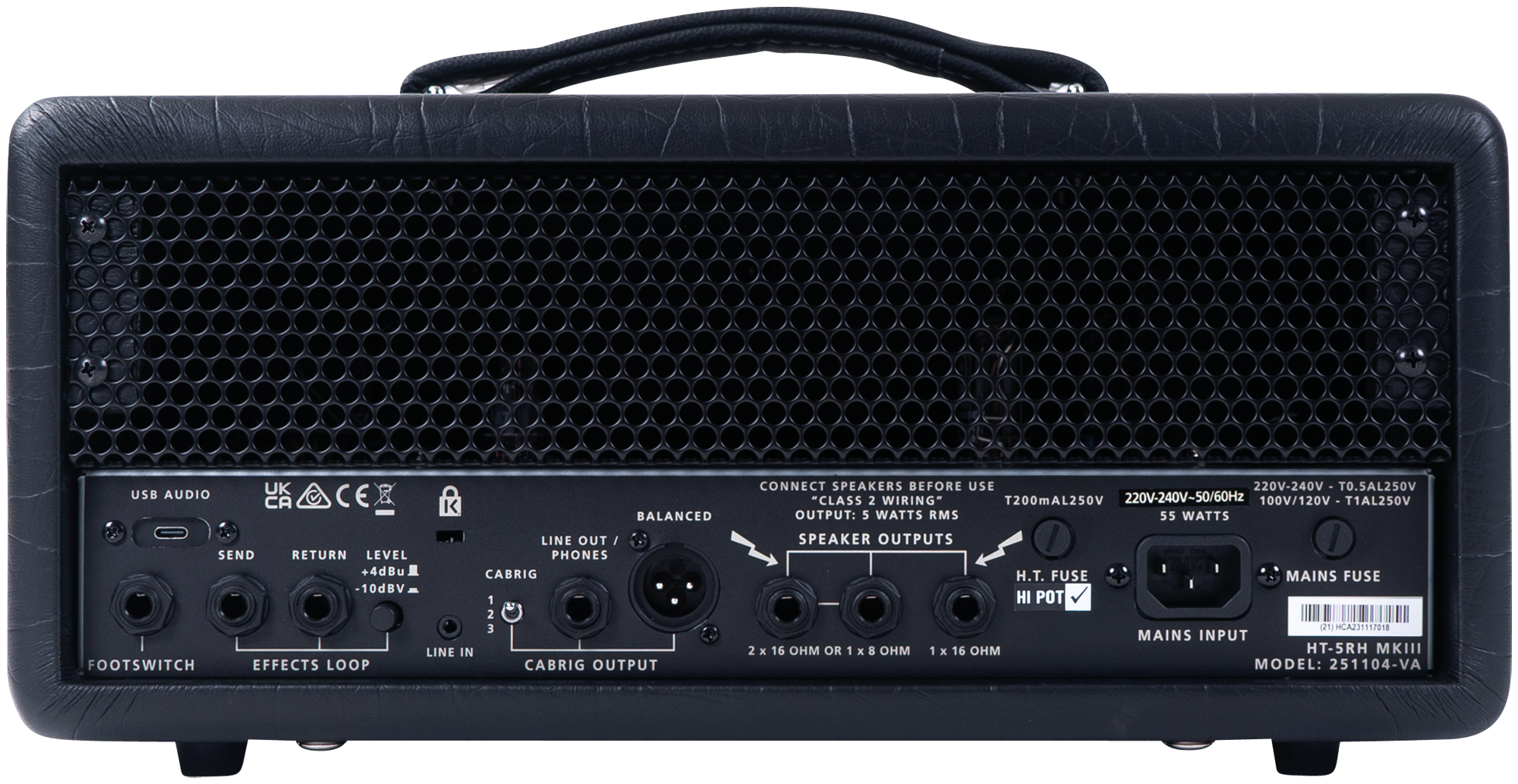

| Connectivity I/O Ports | 1/4" Instrument Input, 3.5 mm Line/Aux In, 1/4" Headphone/Line Out (with Cabrig processing), USB-C, Footswitch jack, Balanced XLR DI Out, Series FX Loop (Send/Return) |
| Enclosure Design | Heavy-duty wooden cabinet wrap finished in industrial Black Tolex |
| Dimensions (W x D x H) | 443 x 405 x 252 mm |
| Weight | 12.4 kg |
Expert Perspective: The Ultimate Direct Injection Valve Engineering for Modern Musicians
From a recording engineer's perspective, the Blackstar HT-5RH MK III head represents the pinnacle of low-wattage tube development. While traditional high-power tube stacks require extreme volume levels to reach their optimal operational saturation, the 12BH7 circuit yields magnificent power-stage clip characteristics at a fraction of the acoustic output. The true innovation lies in the Cabrig DSP engine; it accurately replaces complex reactive load boxes and microphone arrangements by processing algorithmic impulses directly from the transformer. This allows touring guitarists and studio musicians to send a pristine, phase-coherent balanced XLR feed straight to front-of-house or studio sound cards with absolute zero ambient bleed.
Buy Blackstar HT-5RH MK III – Expand Your Sonic Palette in the Studio
When you make the decision to buy Blackstar HT-5RH MK III, you gain an exceptionally versatile rig centerpiece that handles everything from crystalline jazz tones to high-gain progressive metal rhythms. The built-in serial effects loop incorporates a switchable signal level pad, ensuring compatibility with both standard instrument-level floor pedals and professional studio rackmount effects. Thanks to the native USB-C streaming port, capturing real tube heat onto your digital tracking software is completely effortless. Explore this premium guitar head at our online store or drop by the Zoundhouse experience store in Dresden to experience its unique ISF routing options firsthand.
