EAR Trumpet Labs Mabel Multi-Pattern Condenser Microphone
Product information "Mabel Multi-Pattern Condenser Microphone"
Ear Trumpet Labs Mabel – Versatile Performance with Boutique Aesthetics
The Ear Trumpet Labs Mabel is a handcrafted multi-pattern condenser microphone designed for critical studio applications including vocals, overheads, and acoustic ensembles.

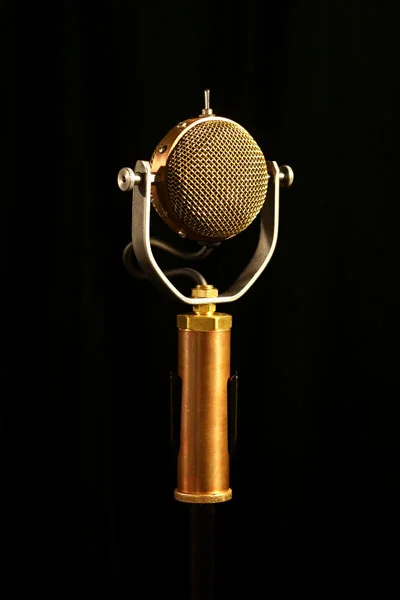

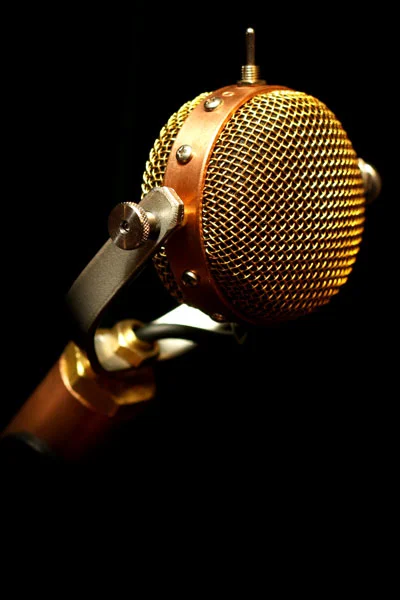

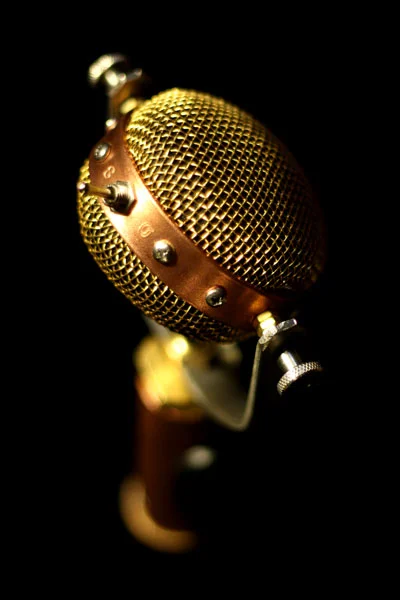

Mabel's most striking feature is its pivoting head basket, constructed from copper and brass, mounted within a stainless steel yoke. This allows for effortless positioning during sensitive recording sessions. Unlike standard multi-pattern mics, Mabel utilizes a dual-cardioid capsule approach (dual 26mm diaphragms). This design provides a significantly deeper null at the sides in Figure-8 mode and a remarkably flat, natural frequency response across all patterns, avoiding the common tonal shifts found in lesser microphones.
The signal path is strictly high-end, featuring transformerless FET electronics, hand-matched JFETs, and premium polypropylene capacitors. The sound is characterized by a rich low-end and a smooth top-end roll-off above 14kHz, delivering a vintage-inspired clarity without harshness. With integrated silk-and-mesh pop filtering and internal shock mounts, Mabel is a professional tool that combines stunning "industrial-chic" looks with world-class sonic performance.
Key Performance Features
- Selectable Polar Patterns: Choose between Cardioid, Omnidirectional, and Figure-8 via a dedicated switch.
- Innovative Pivoting Head: Solid copper and brass construction for easy mic placement and durability.
- Matched Dual Capsules: Two hand-selected 26mm electret capsules for precise directional control.
- Hand-Wired Circuitry: Built with metal film resistors and hand-biased transistors for ultra-low noise.
Technical Specifications
| Feature | Specifications |
|---|---|
| Transducer Type | Condenser, Dual Medium-Large Diaphragm (26 mm) |
| Polar Patterns | Cardioid, Omni, Figure-8 (selectable) |
| Frequency Response | 20 Hz - 18 kHz (-3 dB) |
| Sensitivity | -33 dB (Cardioid), -38 dB (Omni/Fig-8) |
| Output Impedance | < 50 Ohm |
| Self-Noise | < 17 dBA |
| Power Requirement | +48V Phantom Power |
| Circuitry | Transformerless balanced FET |
| Pop Filter | Integrated Silk and Mesh |
| Construction | Handmade Copper, Brass, and Stainless Steel |
| Weight | 1.2 lb (Microphone only) |
| Dimensions | 8 1/2" x 4 1/2" x 1 3/4" |
