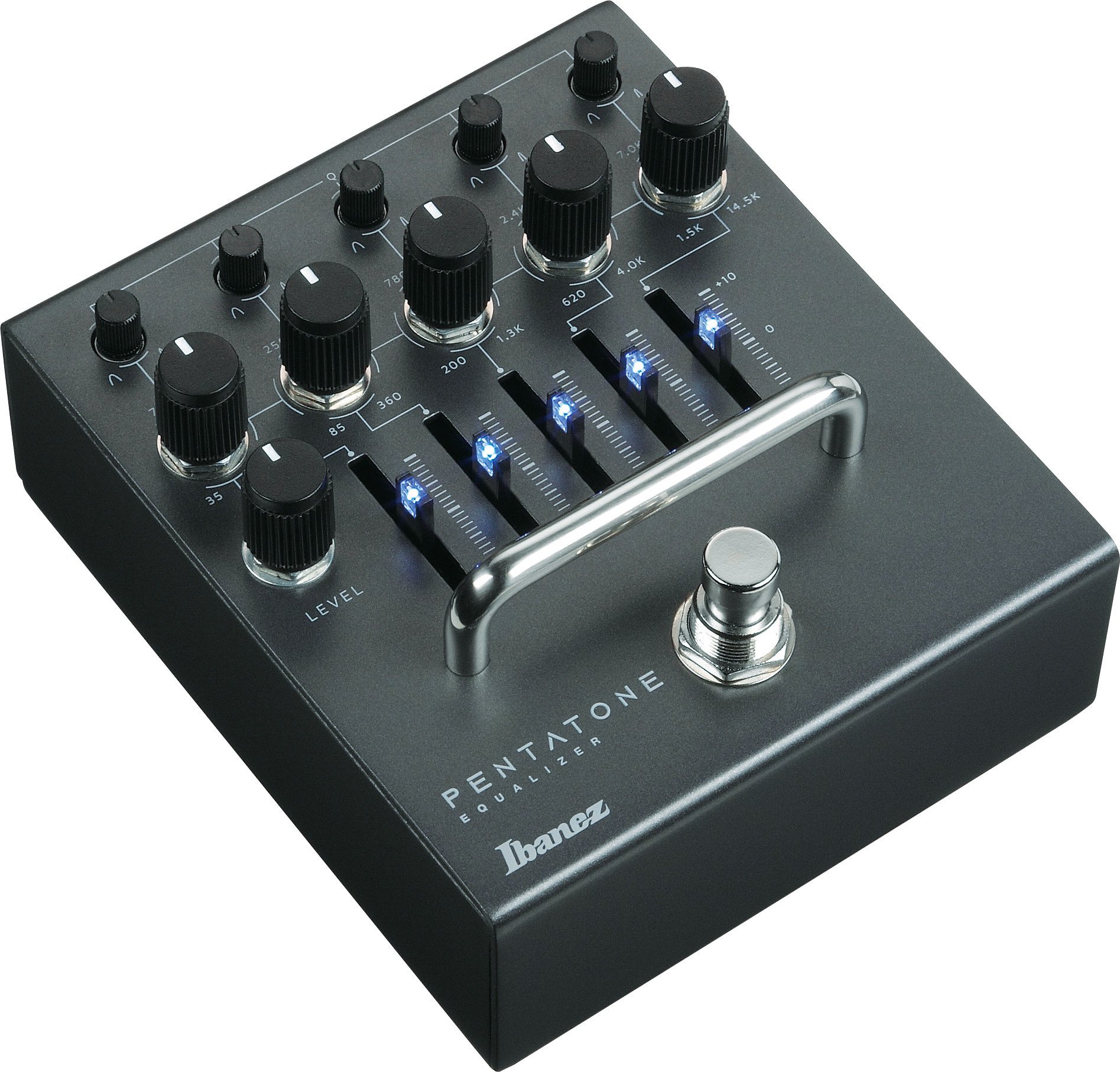

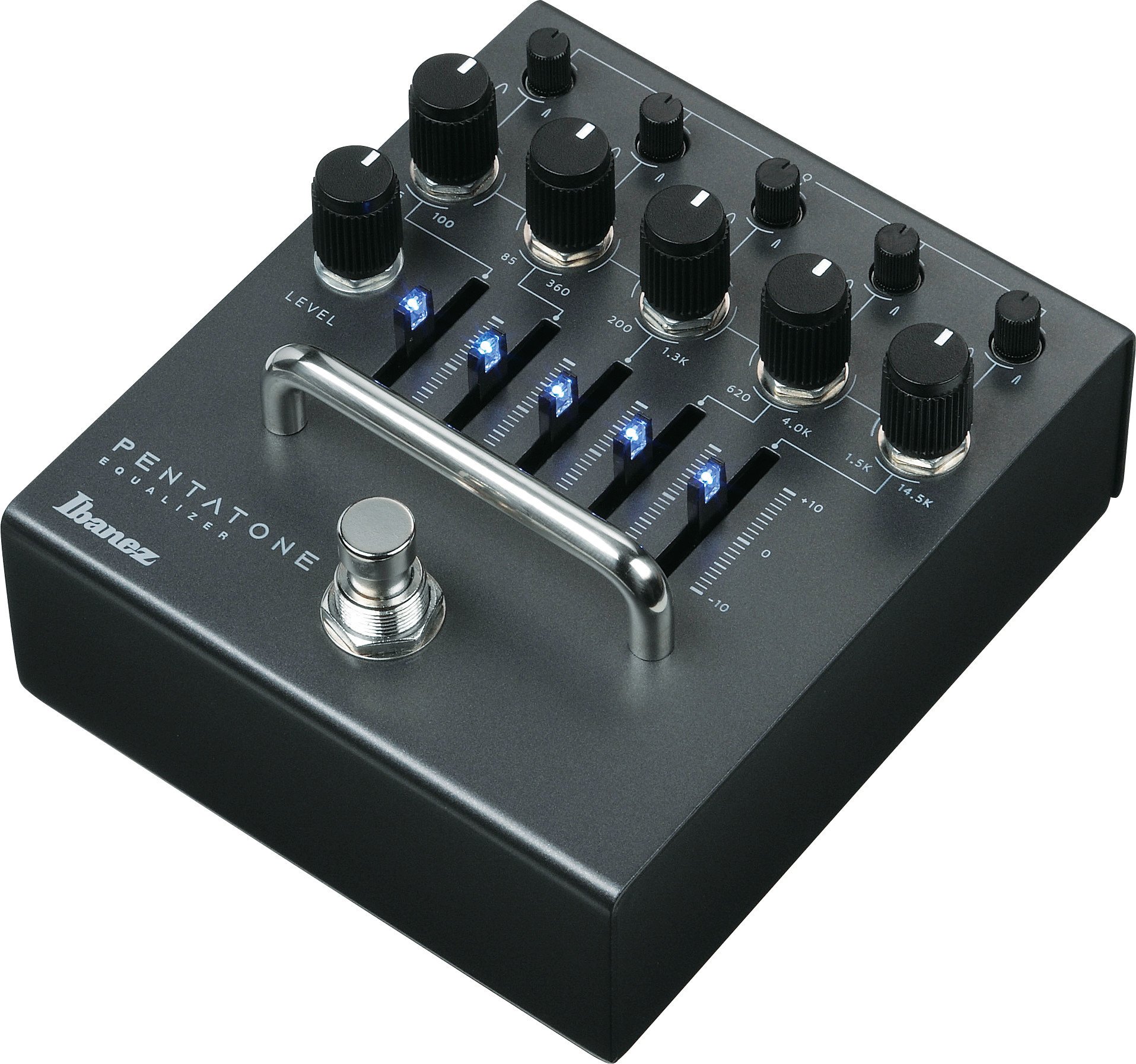

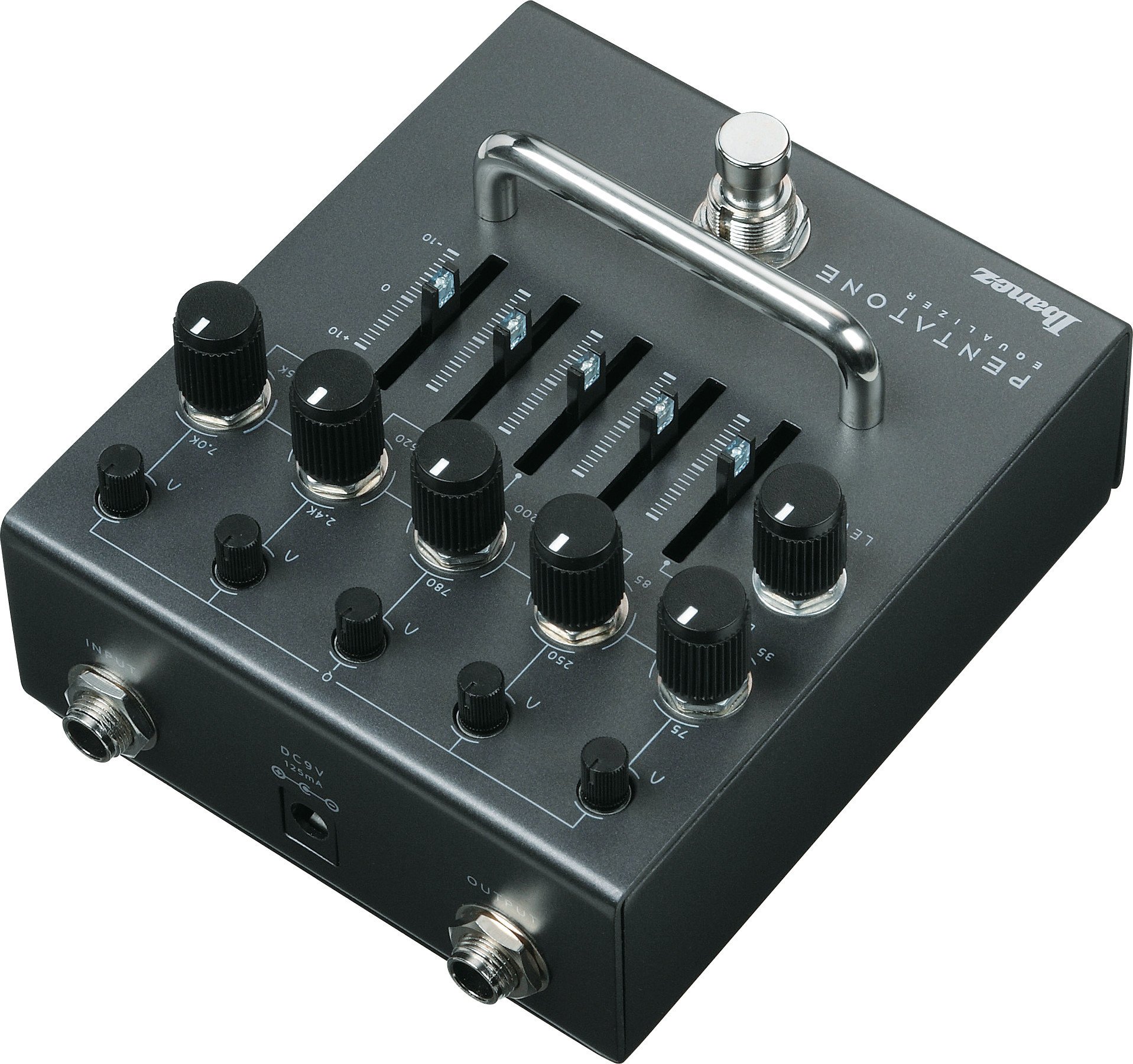

Ibanez Pentatone PTEQ Parameter EQ Pedal
Product information "Pentatone PTEQ Parameter EQ Pedal"
Ibanez PTEQ Pentatone - 5-Band Parameter Equalizer
The Ibanez Pentatone Equalizer is a standalone powerhouse based on the 5-band EQ section of the acclaimed Pentatone Preamp. Designed for surgical precision, the PTEQ adds a continuously variable Q control to each band, allowing for an incredibly wide variety of sound creation possibilities. Whether you need to notch out troublesome frequencies or boost musical sweet spots, the PTEQ delivers with studio-quality accuracy.
Engineered with a ±9V internal power supply circuit, this pedal provides immense headroom. This makes the parametric equalizer suitable not only for electric guitars but also for high-output instruments like bass guitars and keyboards. With its True Bypass design, your signal remains pure and unaffected when the pedal is disengaged.
Key Features & Highlights
- 5-Band Parametric EQ: Comprehensive frequency control for versatile sound design across the entire spectrum.
- Individual Q Control: Continuous Q adjustment on every band for narrow surgical cuts or wide musical boosts.
- Professional Headroom: Internal voltage doubling ensures clean operation even with active pickups or line-level signals.
- Master Volume Control: Adjust the overall output from total silence (-∞dB) up to a +6dB clean boost.
Technical Specifications
| Specification | Details |
|---|---|
| Effect Type | 5-Band Parametric Equalizer |
| Per Band Controls | Frequency, Level (±10dB), Q (Width) |
| Master Level | Output Volume Control (-∞dB to +6dB) |
| Bypass Mode | True Bypass |

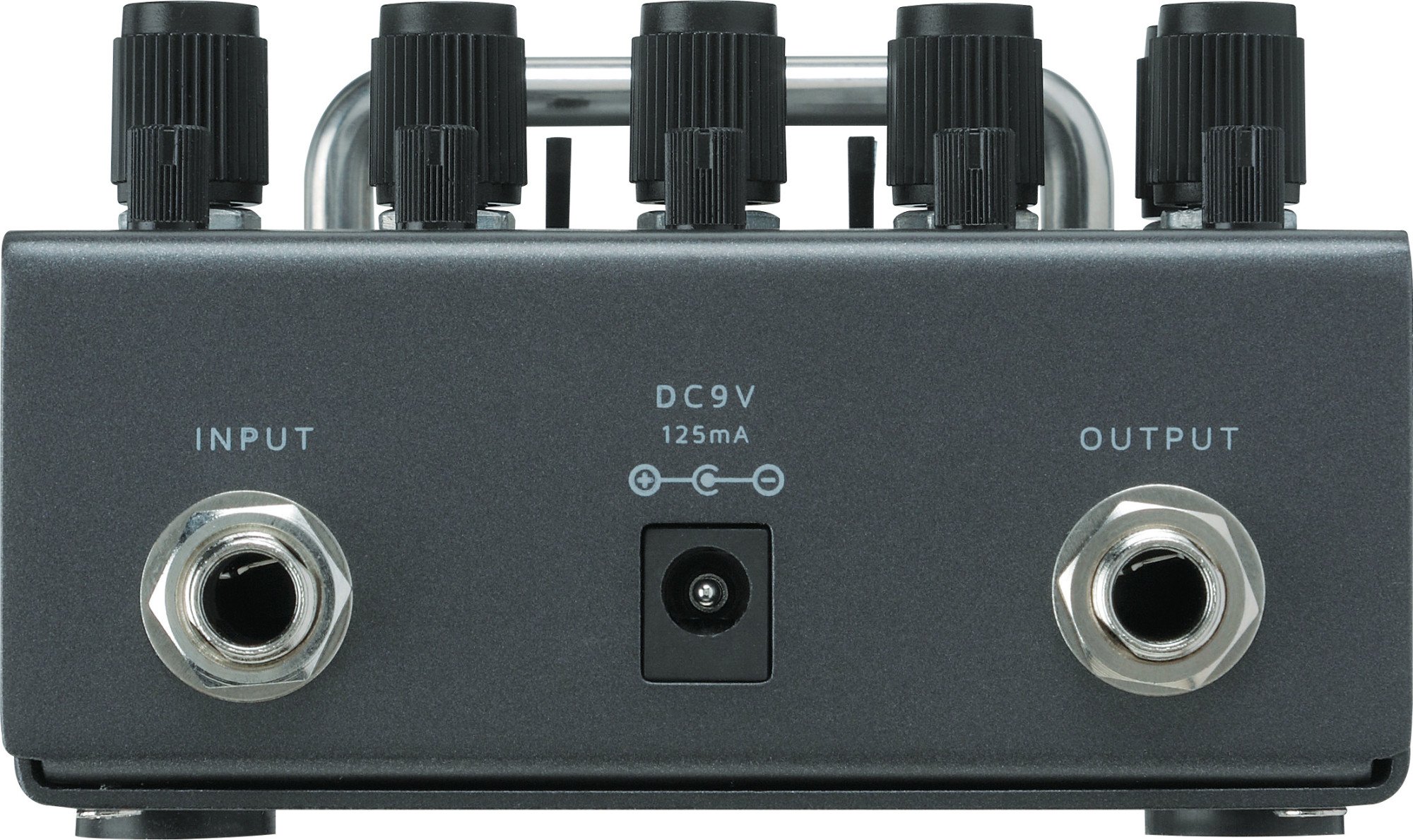

| Power Requirements | 9V DC center negative (internal ±9V conversion) |
| Build | Durable Metal Housing |
| Dimensions (L x W x H) | 123 mm x 100 mm x 63 mm |
| Country of Origin | China |
