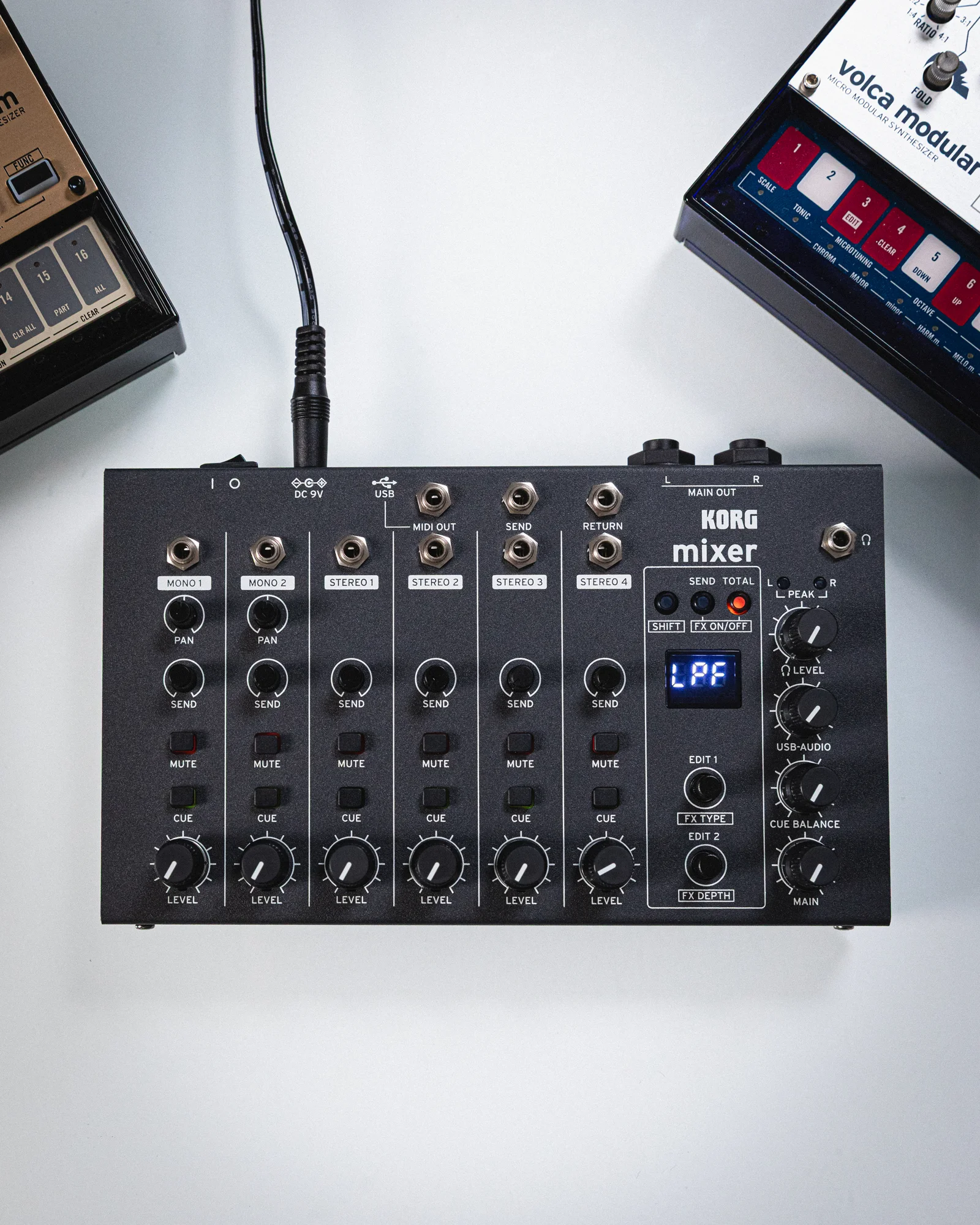

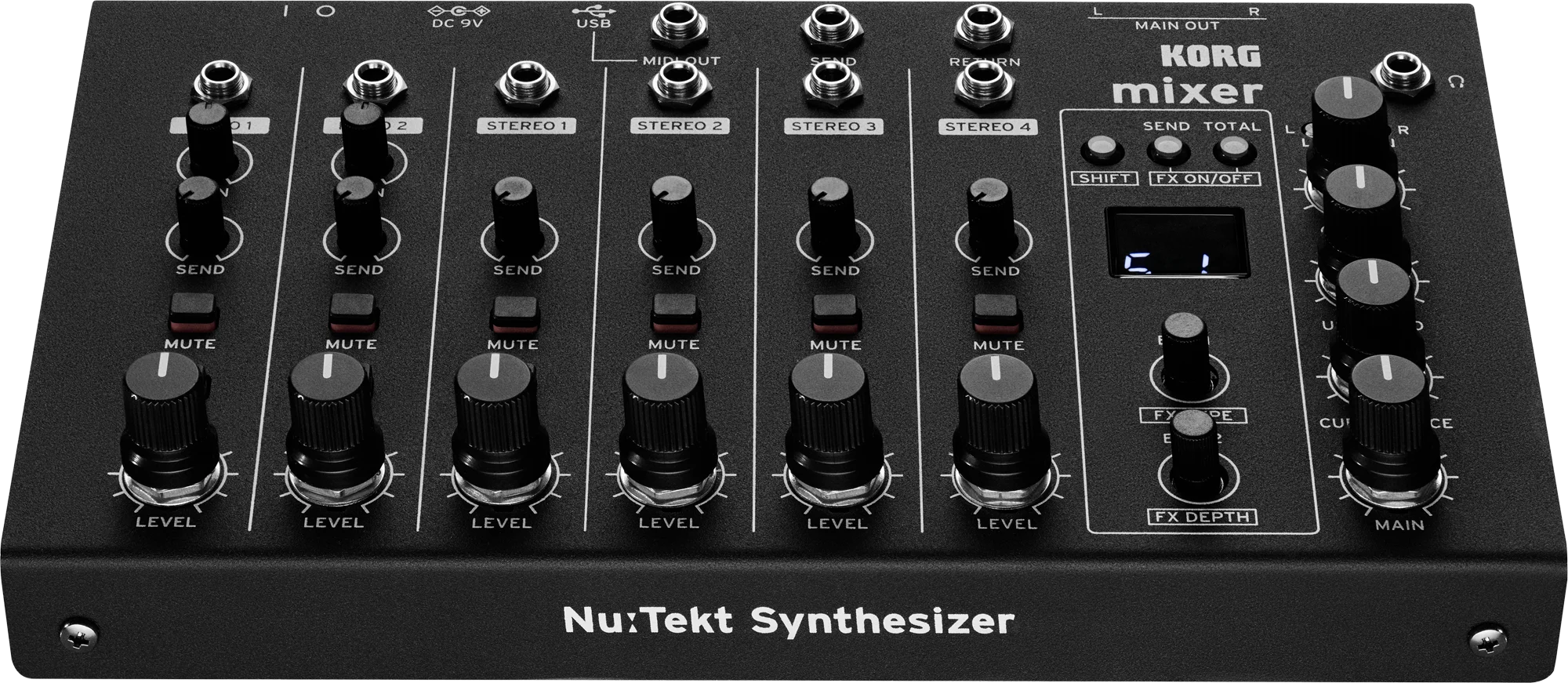

The Korg NTS-4 is a highly capable performance mixer kit belonging to the acclaimed Nu:Tekt DIY series, meticulously engineered for electronic live performance setups and portable synth rigs. This unique instrument can be assembled quickly and completely without soldering. Featuring a versatile configuration of two mono and four stereo channels via 3.5 mm mini-jacks, the NTS-4 acts as a centralized routing hub for mini-synthesizers, drum machines, and effects pedals. Equipped with a built-in USB-C audio interface, digital send and master DSP effects, and switchable signal levels, this compact desktop mixer yields professional mixing capabilities in a pocket-sized form factor.
Key Highlights for Live Performers & Synth Enthusiasts
- Solderless DIY Architecture: Easy, straightforward assembly requiring no prior technical experience or special tools.

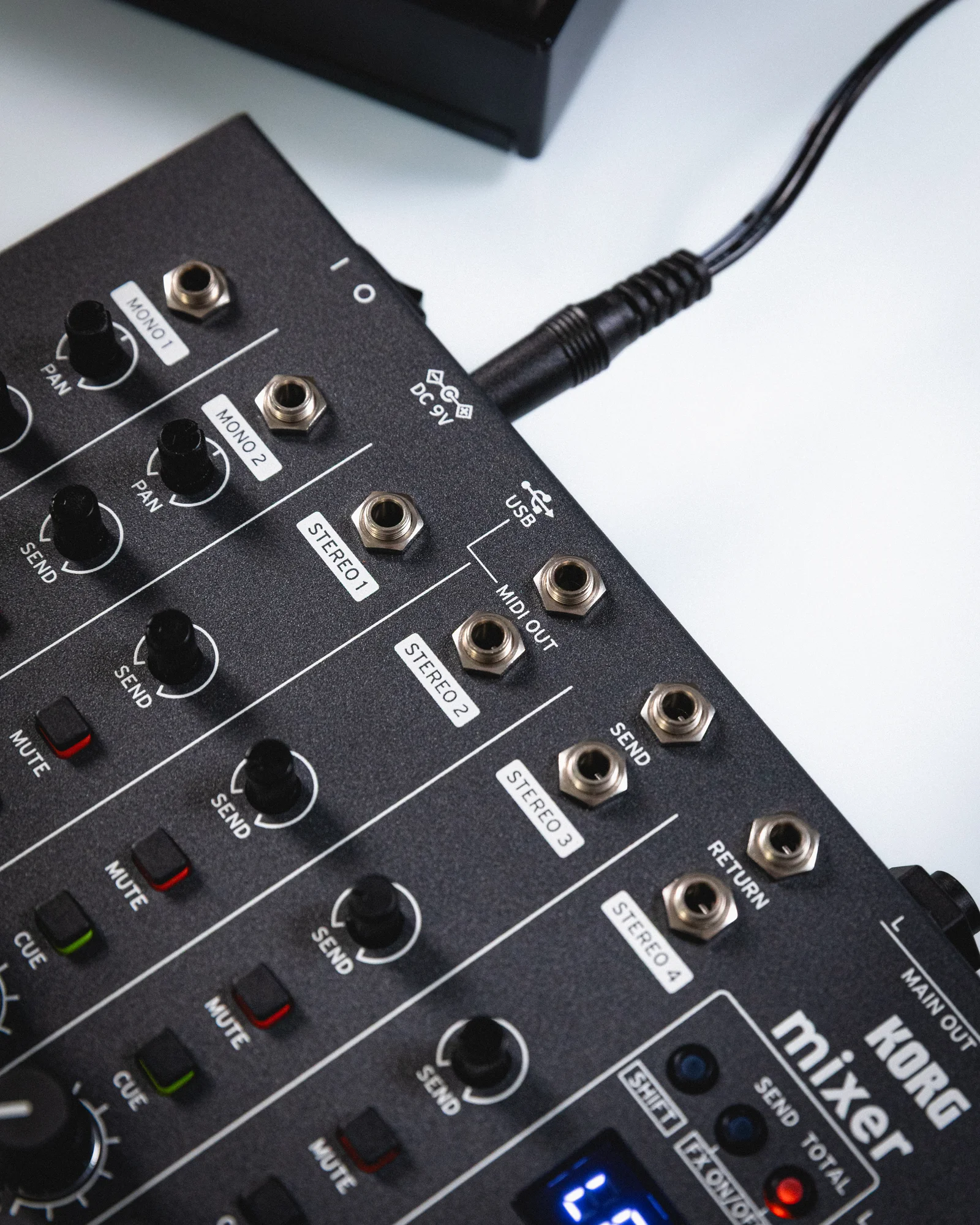

- Comprehensive Channel Matrix: 2 mono channels (with PAN control) and 4 stereo channels via 3.5 mm mini-jack connectivity.
- Eurorack Level Optimization: Mono channels can be internally switched to handle hot Eurorack signal levels safely.

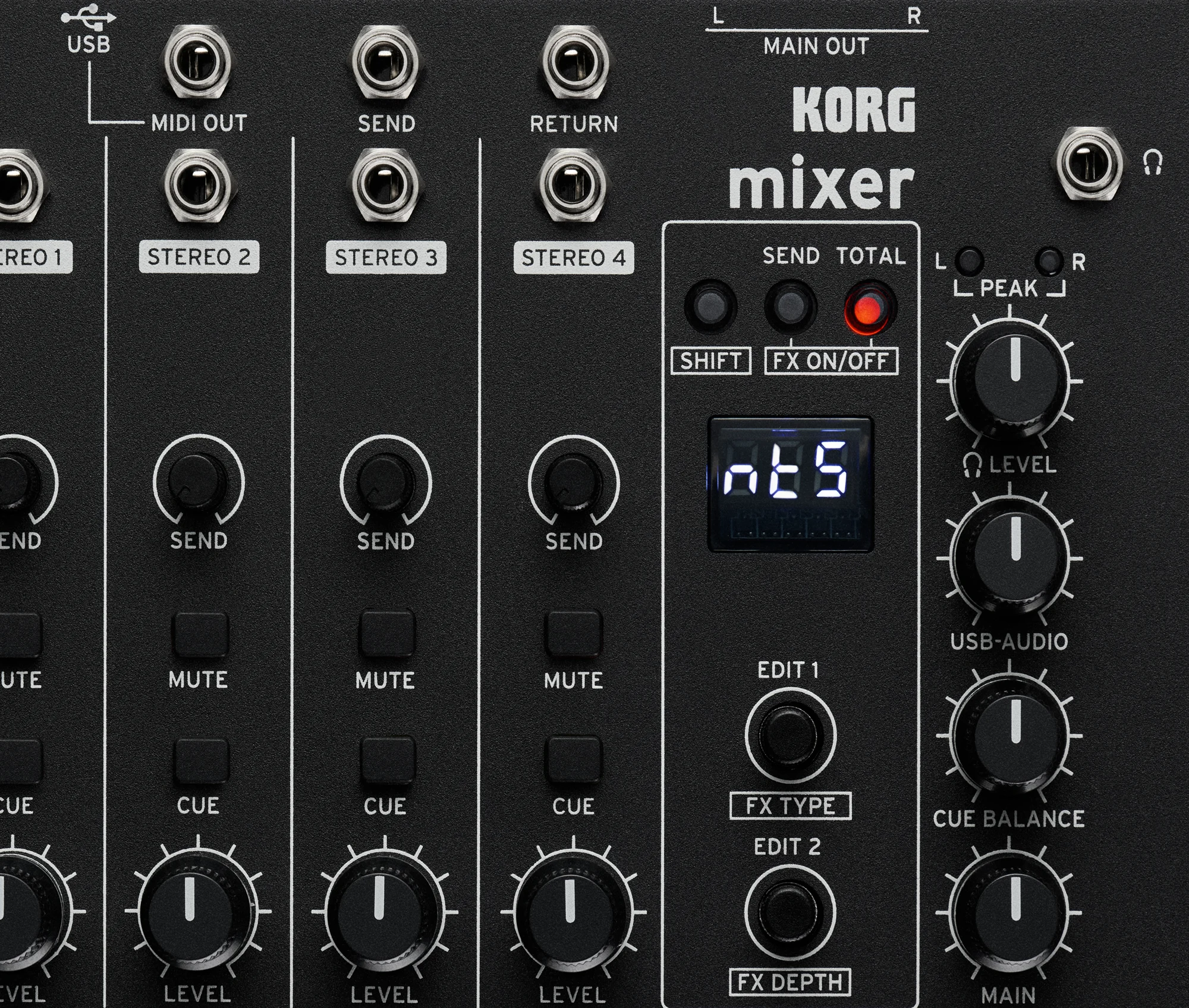

- Tactile Performance Controls: Dedicated SEND knobs, MUTE buttons, and CUE buttons per channel strip for real-time jamming.
- Onboard Digital DSP: Dynamic array of integrated digital send and master effects tailored for modern sound design.
- Pro Connectivity Options: Integrated USB-C audio interface, a dedicated external FX loop, and hardware MIDI output.
Technical Specifications & Component Architecture
| Feature / Component | Technical Specification |
|---|---|
| Model | Korg Nu:Tekt NTS-4 |
| Product Class | Performance Mixer Kit (DIY - Do It Yourself) |
| Assembly Method | 100% Solderless (Snap-fit and screw assembly) |
| Mono Inputs | 2x 3.5 mm mini-jack (internally switchable to Eurorack levels) |
| Stereo Inputs | 4x 3.5 mm mini-jack |
| Per-Channel Controls | SEND control, MUTE button, CUE button (PAN control on mono channels only) |

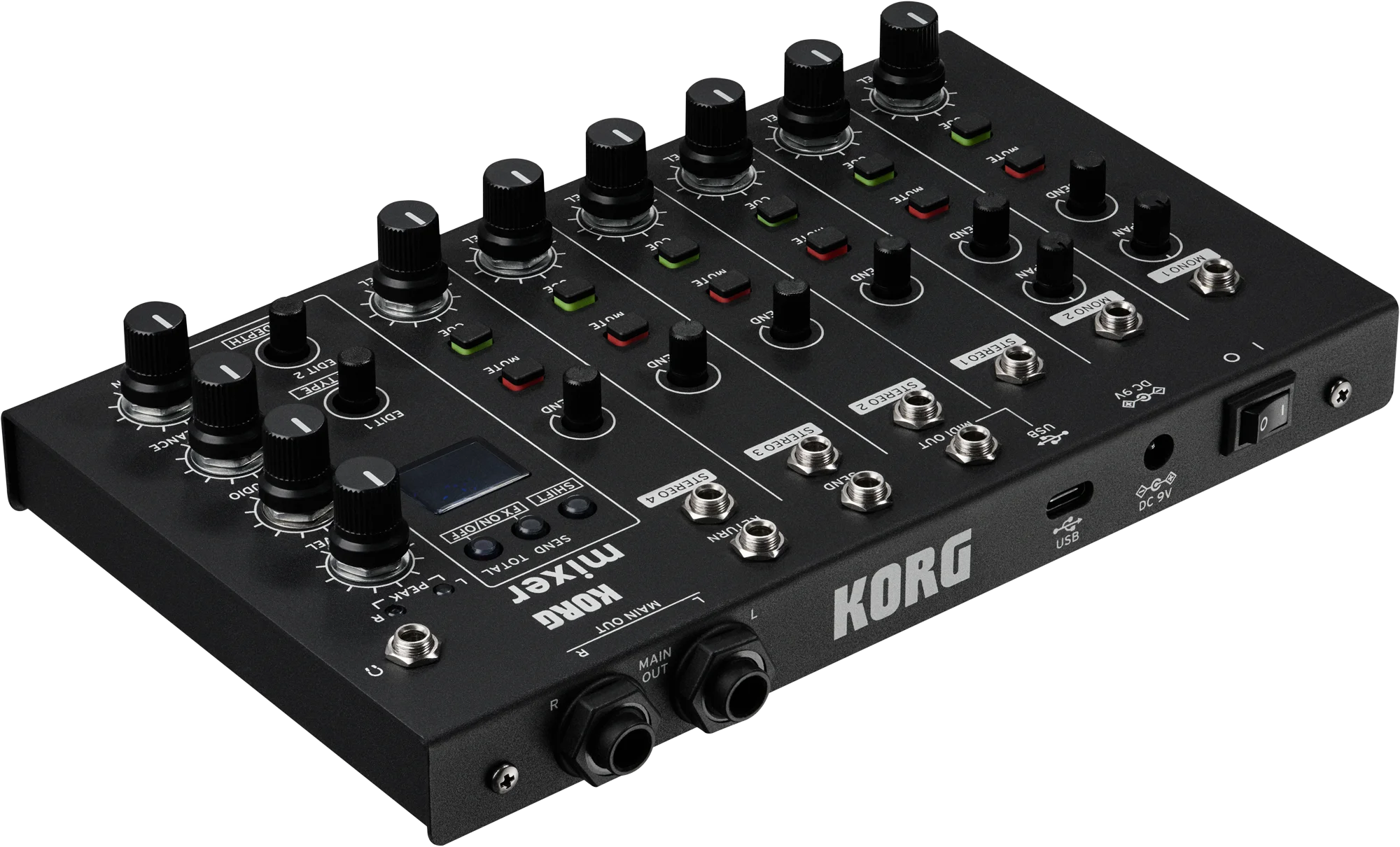

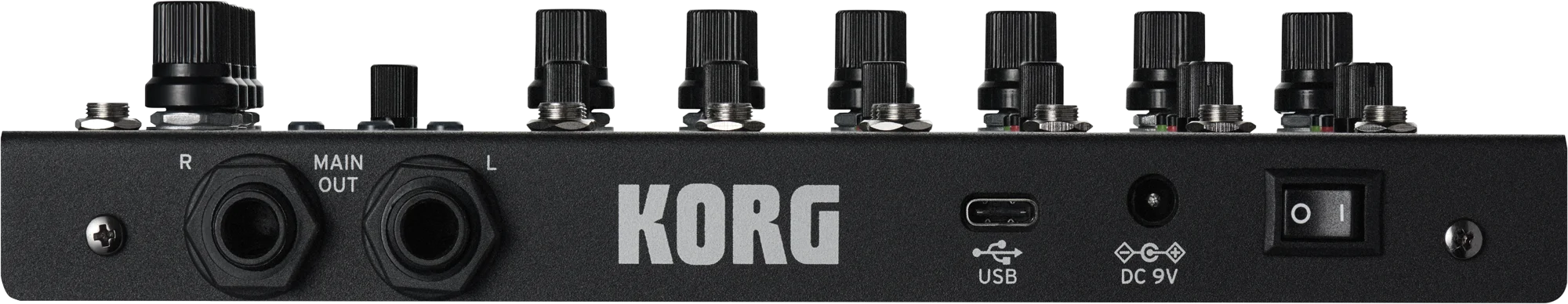

| Main Audio Outputs | 2x 1/4" (6.3 mm) TS jacks (L/Mono, R) |
| Headphone Output | 3.5 mm mini-jack with dedicated CUE monitoring system |
| Onboard FX | Integrated digital send effects and master stereo effects processor |
| External FX Loop | Dedicated Send/Return routing for outboard effects units |
| Audio Interface | Integrated digital audio streaming interface via USB-C |
| MIDI Connectivity | Hardware MIDI Output for external clock/gear synchronization |
| Power Architecture | USB-C bus powered or via optional 9V DC external power supply |
| Target Application | DAWless jamming, live electronic performances, mobile recording rigs |
Expert Perspective: Why You Should Buy the Korg NTS-4 Mixer
From an audio engineering and performance workflow standpoint, the Korg NTS-4 resolves a critical bottleneck frequently encountered in compact desktop hardware setups. Traditional micro-mixers lack the tactile performance utilities required for dynamic live arrangement; however, the NTS-4 introduces dedicated, latching Mute and Cue switches alongside an external FX loop. This enables professional-tier transitions, prompt muting, and sophisticated dub-style delay sends. The ability to shift the input stage impedances to accommodate Eurorack equipment turns it into a powerful utility tool for hybrid setups. For anyone demanding an ultra-portable sub-mixer with uncompromised operational capability, deciding to buy the Korg NTS-4 mixer is a logical upgrade.
Target Audience and Studio Integration
This DIY performance tool is tailored specifically for live modular electronic acts, mobile hardware loopers, and field recording artists. The integrated multi-channel digital converter over USB-C eliminates the need for an external audio interface during remote tracking sessions, allowing pristine capture of stereo master mixes. The educational value of building the mixer further deepens the relationship between the music creator and their electronic hardware infrastructure.
