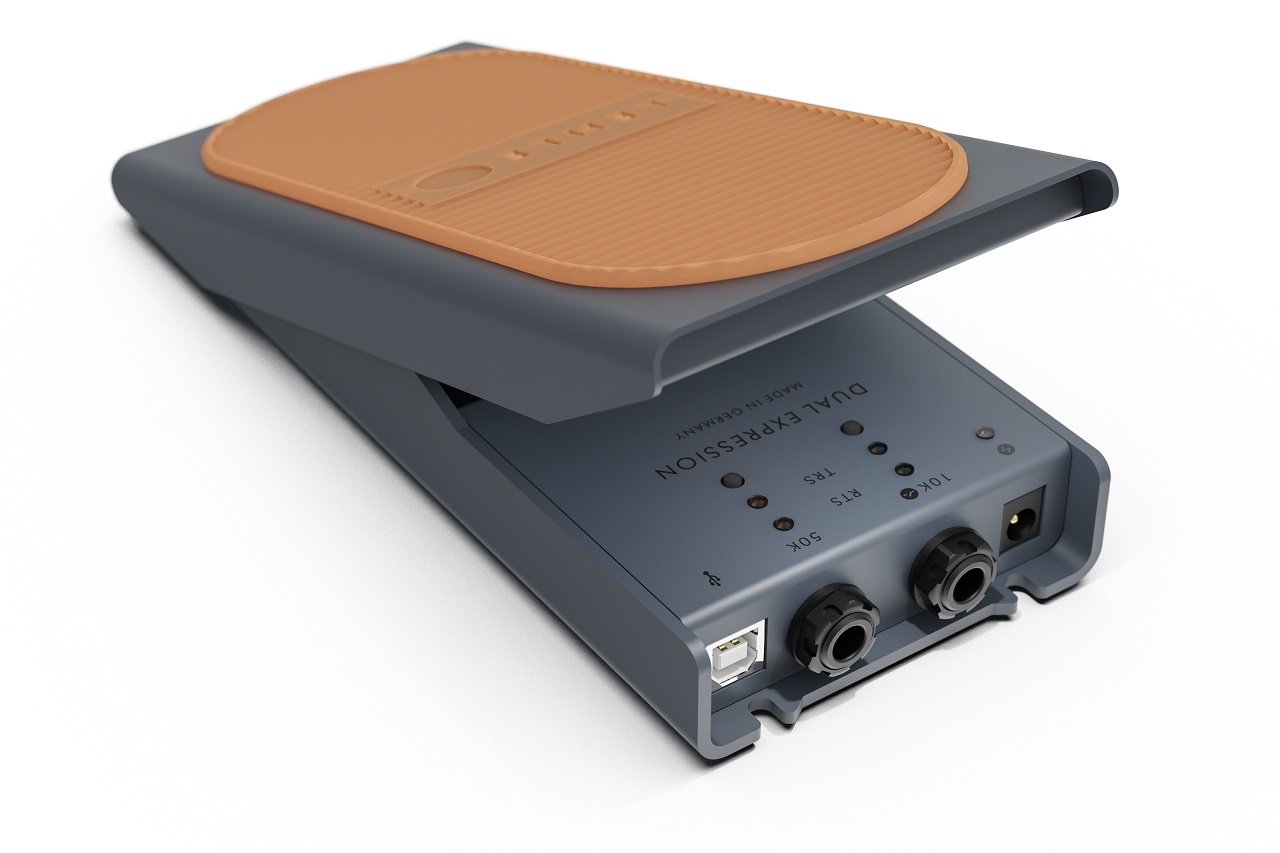

Lehle Dual Expression Pedal with Two Outputs

Lehle Dual Expression – Wear-Free Expression Pedal with Two Outputs

Express yourself – twice over: the Lehle Dual Expression is an active, wear-free expression pedal featuring highly precise magnetic sensor technology. Two outputs, a switch function and MIDI via USB make it a flexible control center for effects units, multi-effects, amplifiers and software – in a significantly smaller and lighter housing.

Key Features at a Glance

• Expression pedal with 2 outputs
• Controls all common devices with expression inputs from 5k to 100k
• Magnetic sensor technology (Hall effect) with no mechanical wear
• Precise control via digital potentiometers
• TS, TRS or RTS polarity adjustable and storable via soft button
• 10k output can also be used as a momentary or latching switch
• MIDI via USB for controlling software
• 50% lighter and 35% smaller than the Lehle Mono Volume

Hall Sensor Instead of Potentiometers: Precise and Maintenance-Free

Known from the Lehle Volume pedals, the sensor uses the Hall effect – named after Edwin Hall – to measure the strength of magnetic fields. In the Lehle Dual Expression, the Hall sensor is precisely calibrated to the built-in magnet and the pedal's travel. The pedal only moves the magnet, and its distance from the sensor is measured. Two digital potentiometers capable of processing analog voltages generate the expression values precisely and reliably.

This technology allows significantly more accurate control than conventional expression pedals with mechanical potentiometers. As there is no mechanical wear, maintenance and tedious adjustment are no longer necessary.

Two Outputs for Almost Any Device – TS, TRS or RTS

The two outputs can control almost all common devices with expression inputs from 5k to 100k – whether TS, TRS or RTS. The polarity of the outputs can be set and saved via a soft button. This lets you control two devices or two parameters at once with just one pedal.

Switch Function in Toe Position

The 10k output can also work as a momentary or latching switch: with the pedal pressed fully down in toe position, you can, for example, switch an amplifier channel or – connected to the switch input of a digital multi-effects unit – control any function you like.

MIDI via USB for Computers and Software

Via the USB port, the Lehle Dual Expression sends MIDI data to a computer. This lets you control MIDI-compatible software directly with your foot.

Smooth Action with Low-Friction Bearings

The pedal moves extremely smoothly thanks to low-friction plain bearings made of a high-performance polymer. An adjustment screw lets you fine-tune the pedal's resistance to your preference.

Compact and Lightweight for Your Pedalboard

Compared to the Lehle Mono Volume, the Dual Expression is 50% lighter and 35% smaller – with the same sturdiness. It is even 2 cm lower, while the pedal travel remains just as comfortable and long as on the larger models. Light, compact and twice the precise expression: Lehle Dual Expression.

Specifications – Lehle Dual Expression

• Product type: Active expression pedal
• Manufacturer / model: Lehle Dual Expression
• Sensor: Magnetic sensor (Hall effect), wear-free
• Control: 2 digital potentiometers
• Outputs: 2 expression outputs
• Compatibility: Expression inputs from 5k to 100k
• Polarity: TS, TRS or RTS, adjustable and storable via soft button
• Switch function: 10k output optionally as momentary or latching switch (toe position)
• USB: MIDI via USB
• Bearings: Low-friction plain bearings made of high-performance polymer
• Pedal resistance: Adjustable via screw
• Size / weight: 35% smaller, 50% lighter and 2 cm lower than the Lehle Mono Volume

Frequently Asked Questions about the Lehle Dual Expression

Which devices does the Lehle Dual Expression work with?

With almost all common devices with expression inputs from 5k to 100k – whether they use TS, TRS or RTS wiring. The polarity is set and saved via a soft button.

Can I control two devices at the same time?

Yes. The pedal has two outputs, allowing you to control two devices or parameters simultaneously.

Does the pedal need maintenance or recalibration?

No. Thanks to the Hall sensor instead of mechanical potentiometers, there is no wear – no maintenance or adjustment required.

Can I also switch my amplifier's channel with it?

Yes. The 10k output can work as a momentary or latching switch and switches when the pedal is pressed fully down in toe position – for example, an amp channel or a function on a multi-effects unit.

Can I use the pedal as a MIDI controller?

Yes. Via the USB port, the pedal sends MIDI data to a computer and controls MIDI-compatible software.
