Source Audio SA 264 One Series Encounter Ambient Delay and Reverb
Product information "SA 264 One Series Encounter Ambient Delay and Reverb"
Product Description
Source Audio SA 264 One Series Encounter Ambient Delay and Reverb is a powerful delay and reverb effects pedal designed for complex atmospheric sound design. It combines advanced effect engines, flexible routing options and extensive control features in a compact and performance-ready format.Effect Architecture and Routing
The pedal provides six delay and six reverb engines that can be used individually or combined. Effects can be routed in series, parallel or split stereo configurations, allowing precise integration into various signal chains. Dual signal processing enables simultaneous use of two effect types with full stereo operation.Control and Operation
Each footswitch independently controls its assigned effect, effectively functioning as two pedals in one unit. Dedicated knobs, rotary and toggle switches, and preset management allow direct access to sound parameters. Additional control options are available via MIDI and external controllers.Connectivity and Construction
The brushed, anodized aluminum enclosure is built for professional use. Stereo inputs and outputs, MIDI connectivity, USB interface and remote control options ensure seamless integration into modern pedalboards and studio environments.Artikeldetails
- Effect type
- Delay and reverb
- Effect engines
- 6 delay types, 6 reverb types
- Signal processing
- 2 identical 56-bit processors
- Routing
- Series, parallel, split stereo
- Simultaneous effects
- 2 effect types at once
- Presets
- 8 onboard, 120 via MIDI
- Controls
- Delay, feedback, tone, control 1, control 2, mix
- Effect selection
- 12-position rotary switch
- Tap tempo
- Subdivision toggle switch
- Footswitches
- Delay/tap tempo, reverb
- Bypass
- Universal bypass, buffered or true bypass

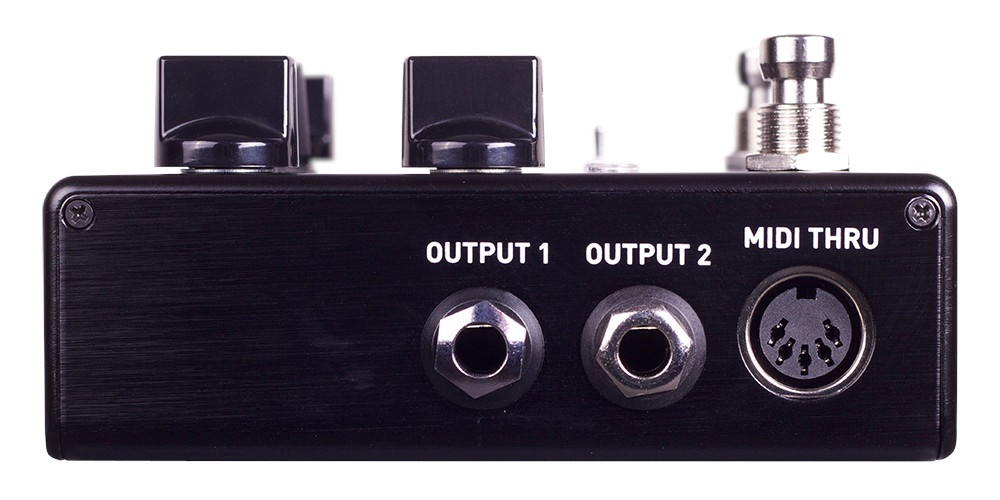

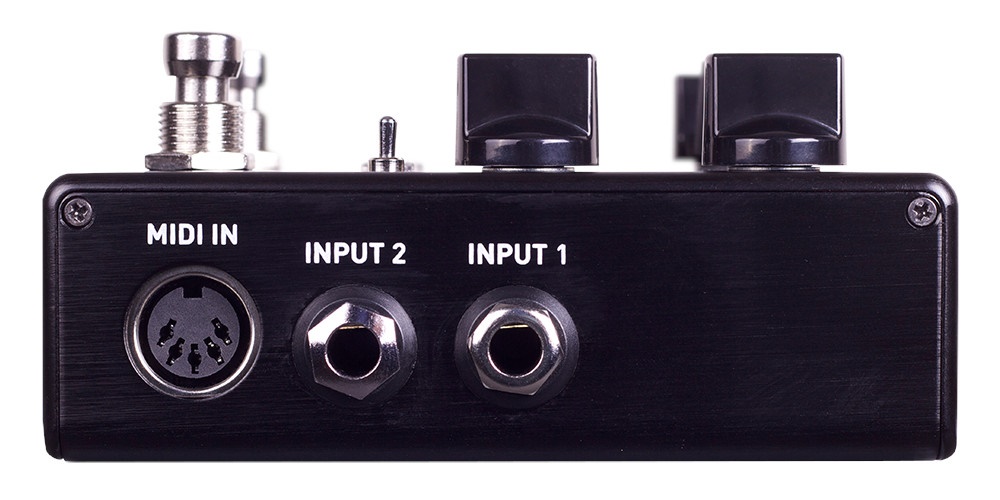

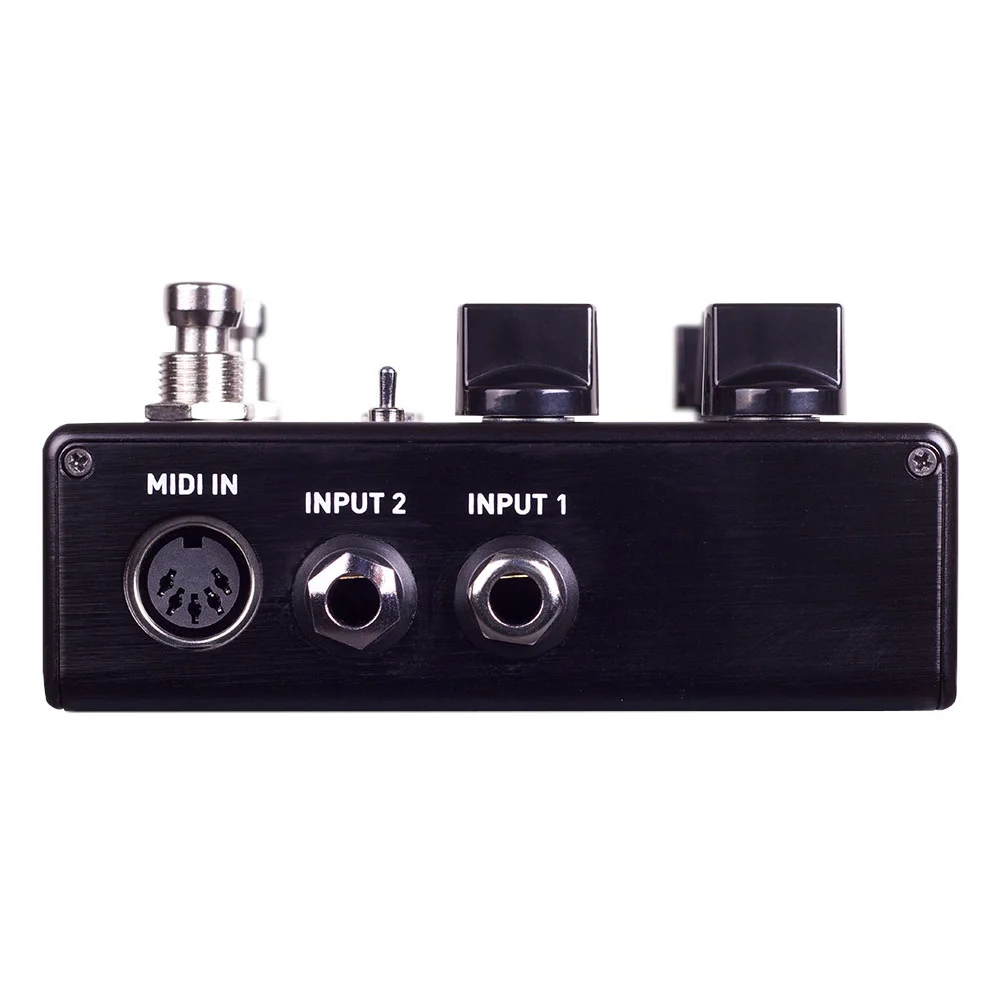

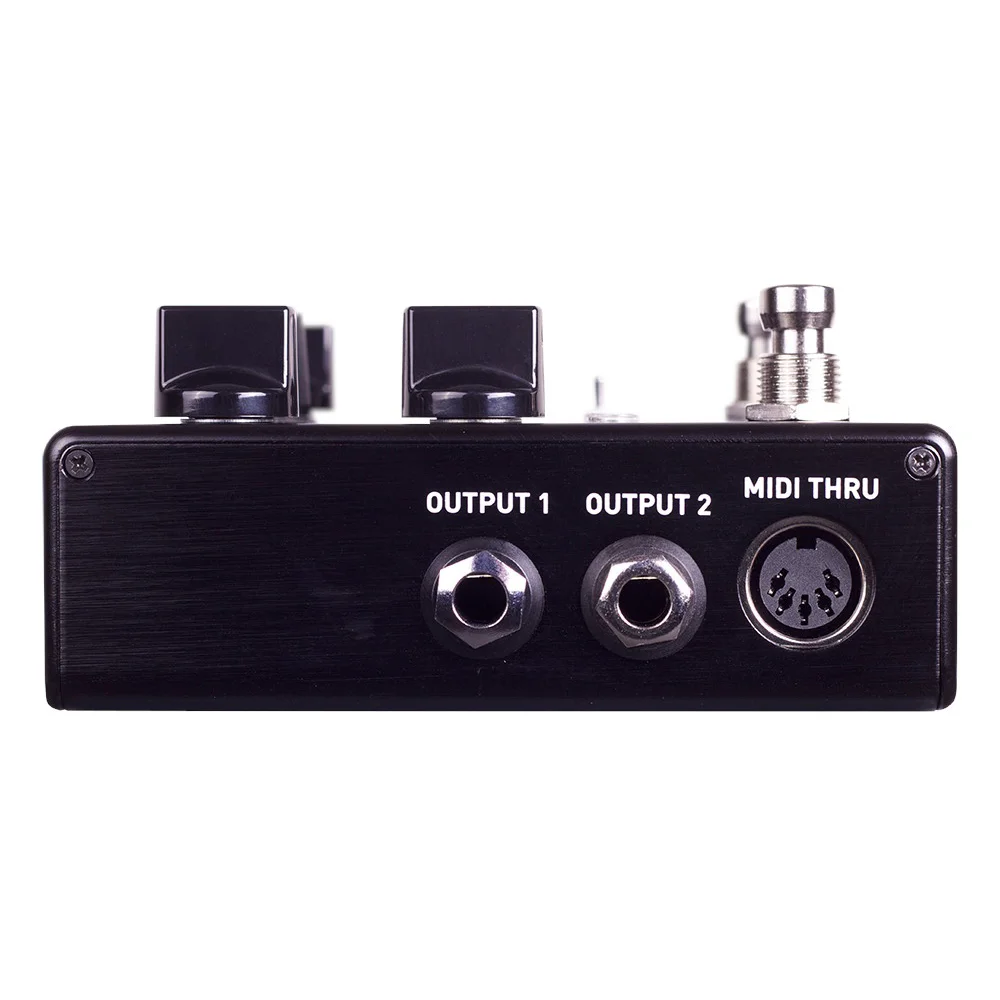

- Inputs
- 2x 6.3 mm TRS stereo
- Outputs
- 2x 6.3 mm TRS stereo
- MIDI
- MIDI in, MIDI thru
- USB
- Mini USB

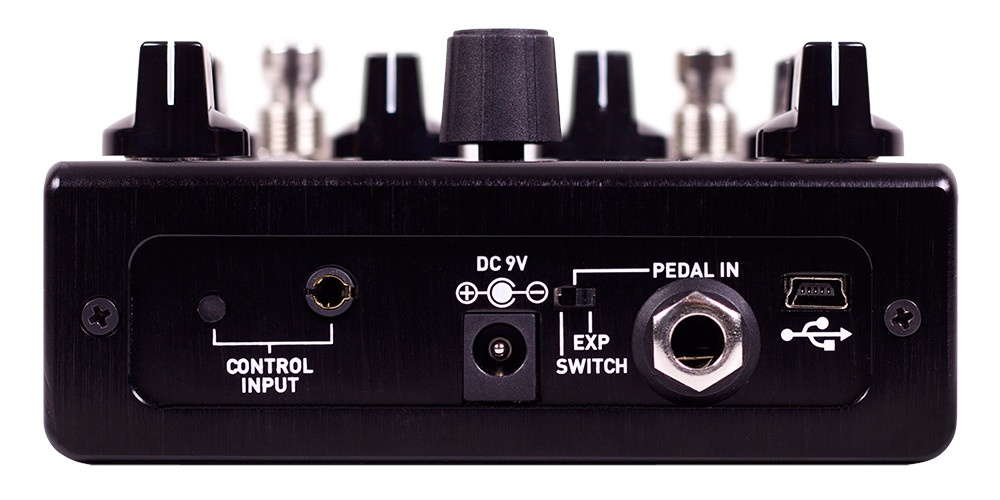

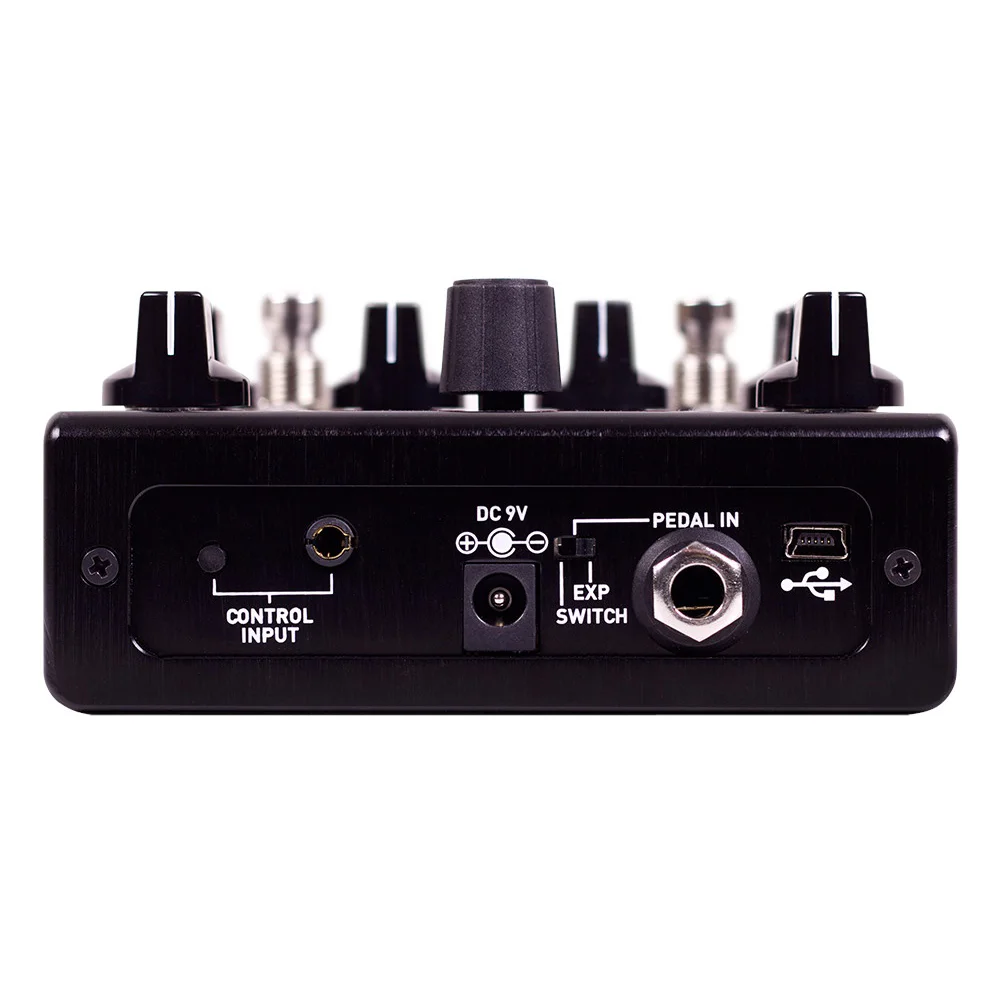

- Remote control
- 6.3 mm TRS, 3.5 mm control input
- Power supply
- Optional 9 VDC adapter, 2.1 x 5.5 mm, center negative
- Current draw
- 280 mA
- Battery operation
- Not supported
- Housing
- Brushed anodized aluminum
- Dimensions
- 114 x 114 x 51 mm
- Weight
- 450 g
