Warm Audio WA-MPX
Product information "WA-MPX"
Product Description
Warm Audio WA-MPX is a single-channel tube microphone preamplifier that authentically recreates the iconic sound of the tape recording era. Based on a classic circuit design, it delivers warm, harmonically rich analog tone suitable for vocals, instruments and low-output sources.Tonal Character and Gain

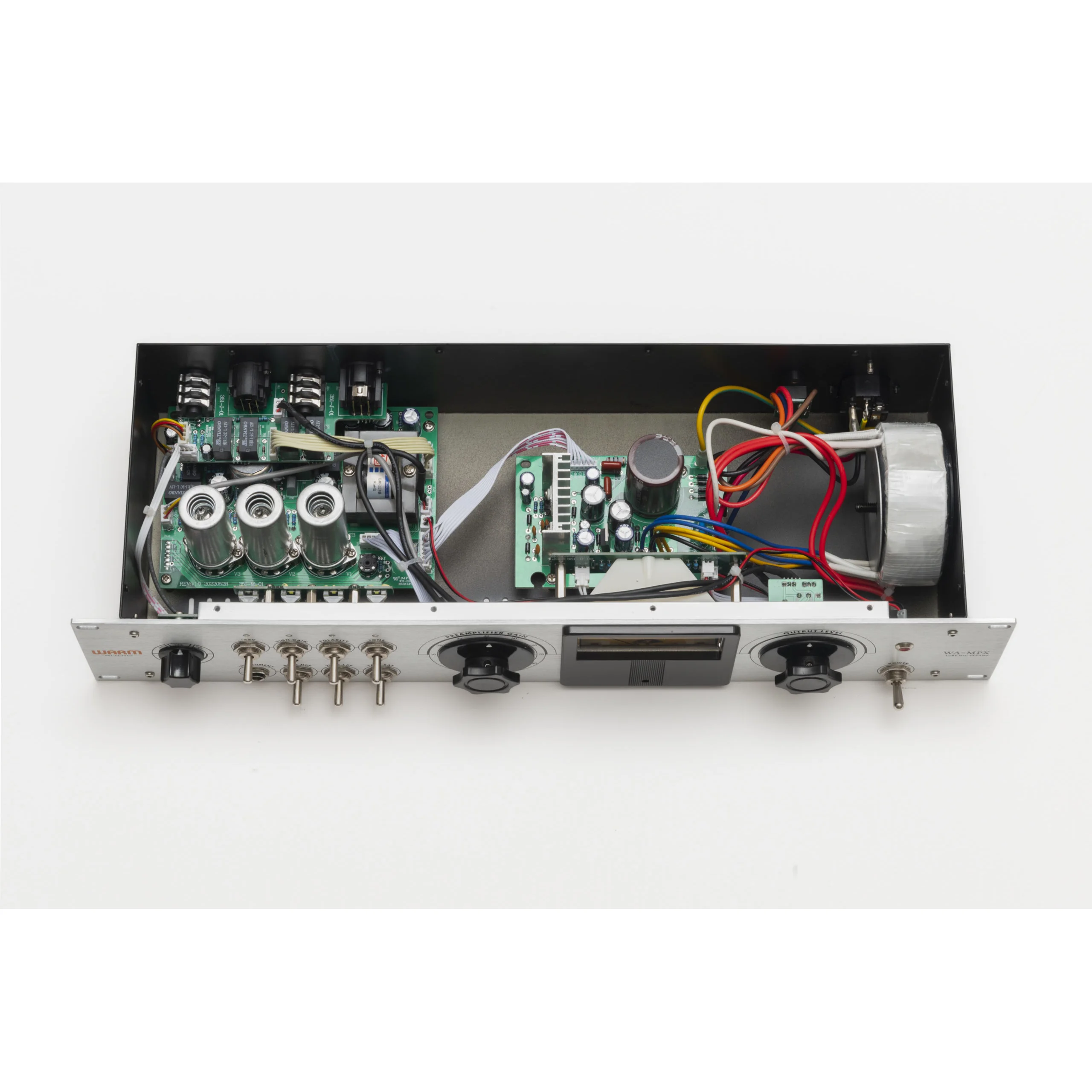

The fully discrete tube circuit with three vacuum tubes per channel provides up to 90 dB of gain, offering ample headroom for microphones with low output levels. The selectable tape saturation adds harmonic distortion and natural compression, enhancing density and musical character.Circuit Design and Signal Shaping
Custom-wound CineMag transformers form the foundation of the authentic vintage tone. The switchable tone circuit alters input impedance to introduce additional analog nuance. High-pass and low-pass filters support focused frequency control directly at the preamp stage.Design and Features

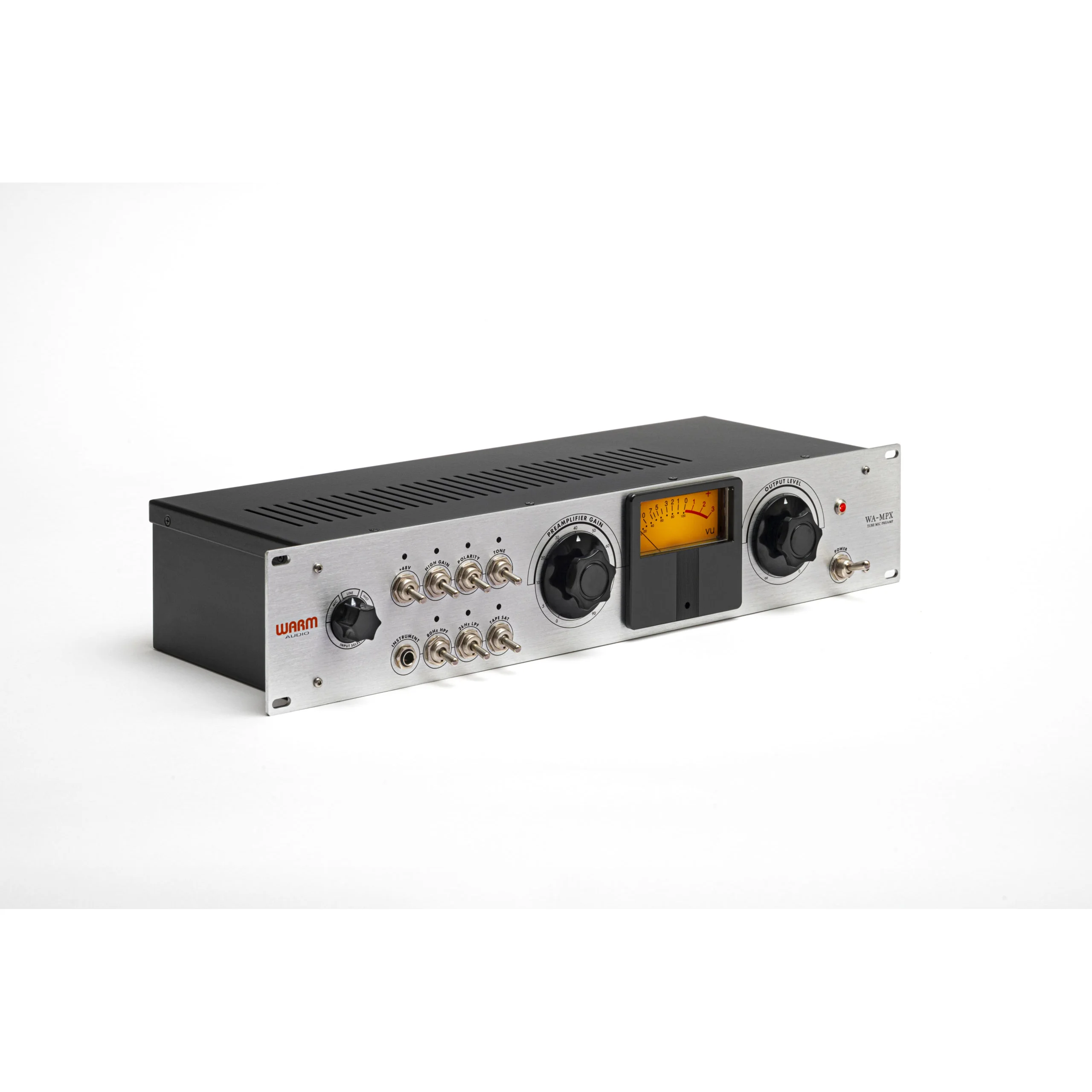

The steel chassis with aluminum front panel and vintage Bakelite-style knobs reflects classic studio aesthetics. An integrated VU meter provides real-time level monitoring, while versatile inputs and outputs ensure flexible integration into professional studio environments.Artikeldetails
- Device type
- Tube microphone preamplifier
- Channels
- 1
- Gain
- Up to 90 dB
- Tube configuration
- 2x 12AX7, 1x 12AU7
- Transformers
- CineMag USA large-core
- Tape saturation
- Selectable
- High gain
- Additional 20 dB
- Phantom power
- 48 V
- Polarity
- Switchable
- Filters
- 80 Hz high-pass, 2 kHz low-pass
- Inputs
- XLR mic, TS instrument, TRS line
- Outputs
- XLR, TRS line
- Level meter
- VU meter
- Frequency response
- 20 Hz – 20 kHz
- Power supply
- Internal IEC 115 V / 230 V
- Dimensions
- 48.3 x 17.9 x 8.9 cm
- Weight
- 3.7 kg
Login
No video available at the moment
Safety note
€760.00*
% RRP: €849.00* (10.48% saved)In stock, delivery in approx. 1–3 days
