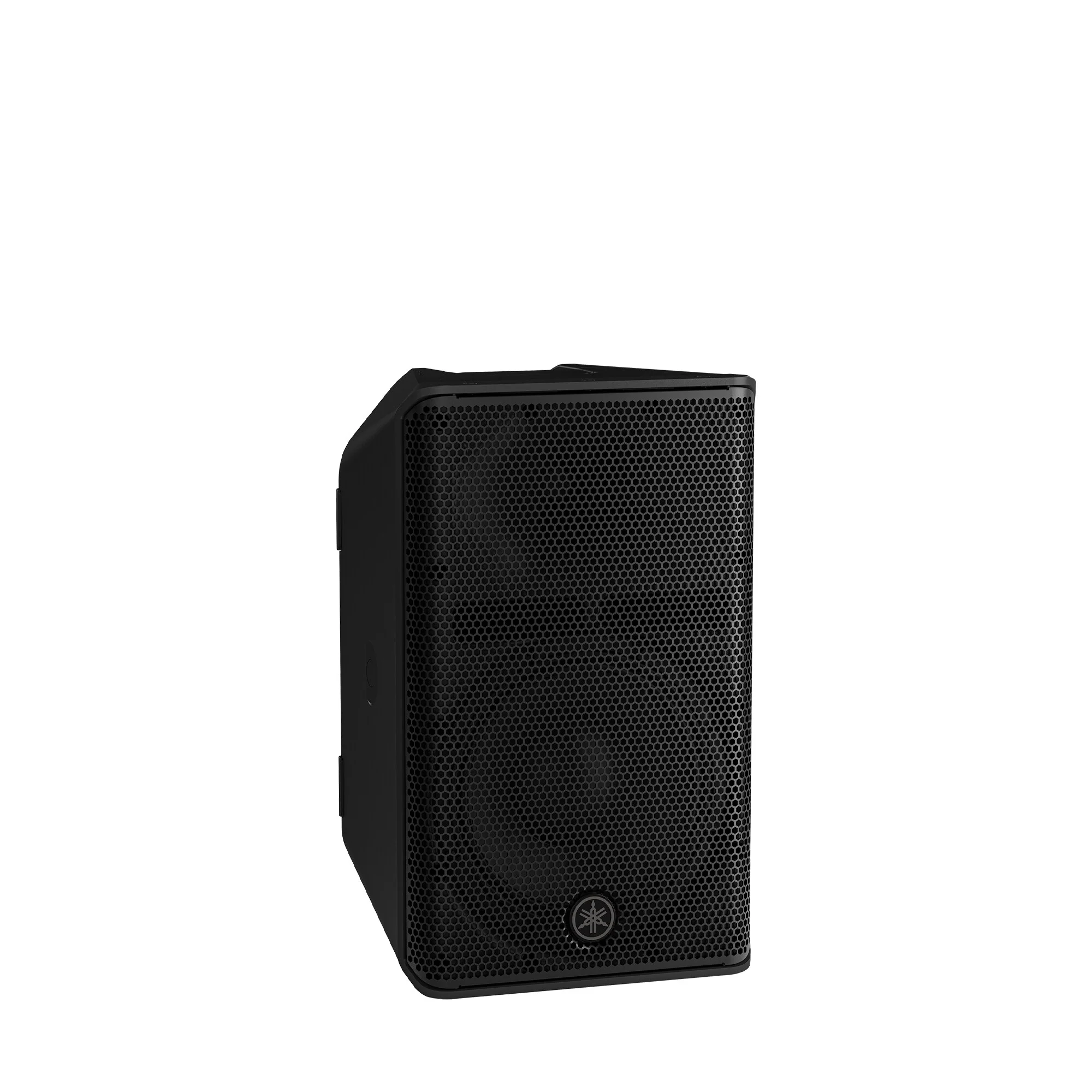

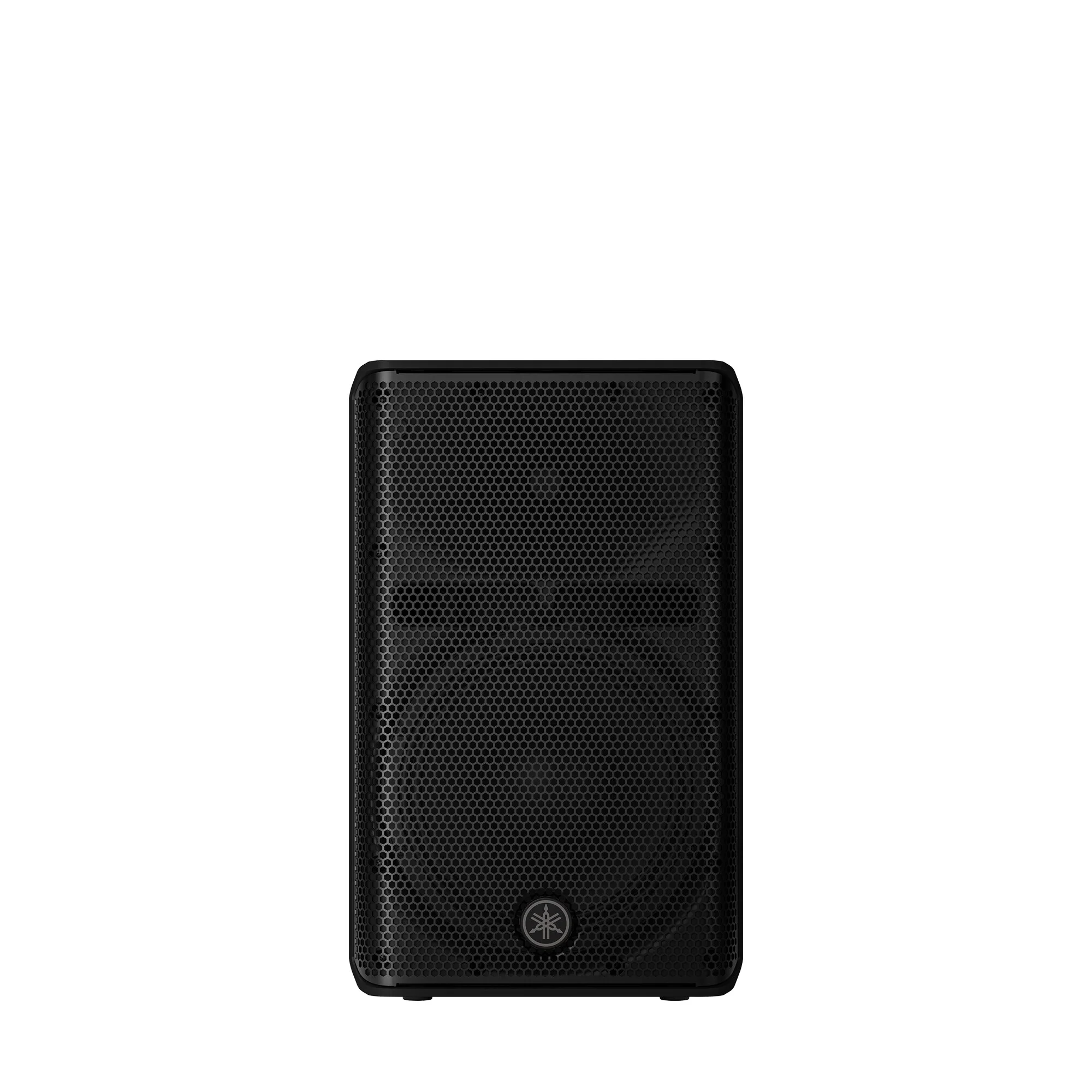

The Yamaha DXR10 MKIII (DXR10mk3) is an ultra-compact, highly versatile active 2-way bi-amp powered PA loudspeaker engineered to deliver outstanding sonic clarity and massive acoustic pressure from an incredibly small footprint. Driven by a high-efficiency 2000-watt Class-D amplifier (1000W RMS), it pairs a punchy 10" low-frequency woofer with a premium 1.75" compression driver. Powered by proprietary FIR-X™ tuning, digital Drive Motion Calibration™, and an automatic AUTO V/H POSITION sensor, this multi-purpose enclosure commands an impressive maximum sound pressure level of 132 dB SPL. Equipped with integrated Bluetooth 5.0, digital remote app configuration, and a lightweight, tour-ready enclosure, it is the ultimate workflow asset for live music, mobile DJs, and permanent audio installations.
Key Highlights of the Yamaha DXR10 MKIII Loudspeaker
- Looking to buy the Yamaha DXR10 MKIII? Upgrade your sound reinforcement system with a lightweight, premium active speaker that yields uncompromising power.
- Massive 2000W Class-D Engine: High-headroom power plant driving clean, undistorted transients and incredible acoustic pressure up to 132 dB.
- Linear Phase FIR-X™ Filtering: Advanced phase-linear crossover transition ensuring natural, transparent frequency distribution and pristine vocal clarity.
- Drive Motion Calibration™: Real-time electronic woofer tracking providing rigid, highly accurate, and impactful low-frequency response.
- AUTO V/H Positioning & Feedback Control: Intelligent sensor automatically optimizes internal EQ maps for vertical or horizontal placement while suppressing feedback loops.
- D-Remote App Integration: Wireless Bluetooth 5.0 connectivity enables convenient multi-parameter DSP tweaking and audio streaming via iOS or Android devices.
Technical Specifications and Hardware Architecture
| System Attribute | Technical Specification Details |
|---|---|
| Model Name | Yamaha DXR10 MKIII (Gen 3 Powered Fullrange Enclosure) |
| Enclosure Design | Active 2-way bi-amp loudspeaker, Bass-reflex architecture |
| Transducer Array | 10" Low-frequency woofer (2.5" voice coil), 1.75" high-frequency compression driver |
| Amplifier Configuration | Class-D, 2000 Watts Peak / 1000 Watts RMS |
| Frequency Range | 53 Hz – 20 kHz |
| Maximum SPL Output | 132 dB SPL |
| Dispersion Pattern (H x V) | 90° x 60° Constant-directivity horn array |
| Crossover Frequency | 1.8 kHz using proprietary FIR-X tuning linear phase filtration |
| DSP System Presets | FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF |
| Digital Features | Drive Motion Calibration, Intelligent Feedback Suppressor, AUTO V/H POSITION detection |
| AD/DA Conversion | High-resolution 32-Bit / 96 kHz digital signal path |
| Wireless Network | Bluetooth Version 5.0 (Supporting SBC and AAC digital audio codecs) |
| Software Architecture | D-Remote control suite app compatibility (iOS / Android platforms) |

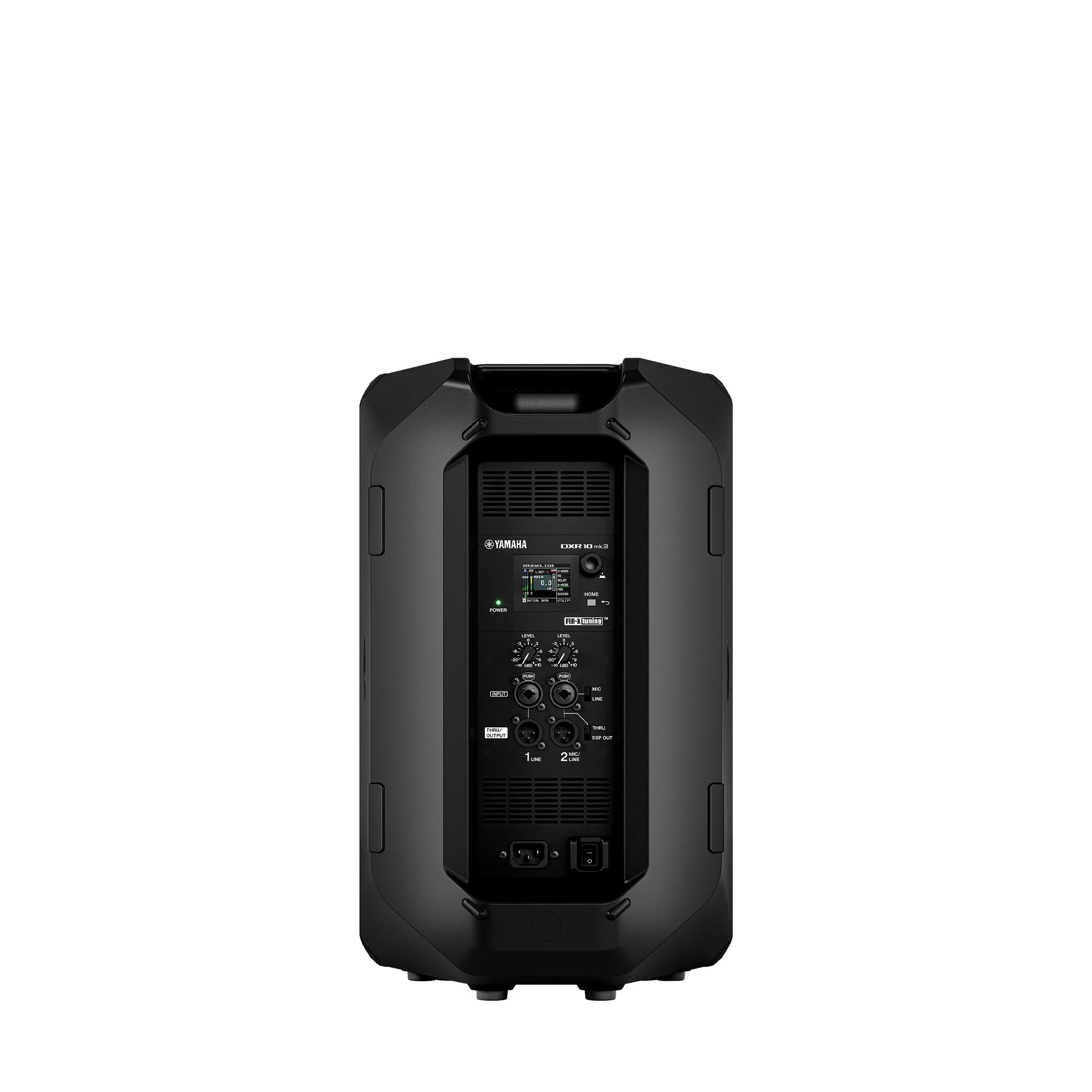

| Audio Input Matrix | 2x XLR/Klinke Combo inputs (switchable Mic/Line sensitivity) |
| Audio Output Array | 2x XLR line sockets (assignable via Thru / DSP Out architecture) |
| Cabinet Structure | Ultra-rugged, lightweight Polypropylene (PP) molding, textured matte black |
| Cooling Implementation | Internal automated 5-speed forced-air thermal cooling fan array |
| Power Consumption Parameters | Universal switching 100–240 V, 50/60 Hz | 120 W (1/8 Power), 35 W (Idle) |
| Rigging & Mounting Sockets | Integrated M10 rigging points, optional U-bracket slot | 35 mm socket with Duo-Tilt (0° or -7 angles) |
| Dimensions (W x H x T) | 310 x 502 x 310 mm |
| Net Weight | Approx. 14.5 kg (31.96 lbs) |
Elite Audio Fidelity and State-of-the-Art Driver Alignment Optimization
The third-generation Yamaha DXR10 MKIII resets industry benchmarks for high-output digital processing in multi-purpose sound systems. Incorporating real-time Drive Motion Calibration™, the high-power 10-inch low-frequency cone is electronically monitored to counteract mechanical turbulence and voice coil distortion when pushed to extreme limits. Acoustic integration is mastered via the phase-linear FIR-X™ crossover filter system at 1.8 kHz, preventing phase cancellation and frequency smear across vital mid-range components. Furthermore, live sound engineers benefit enormously from the integrated AUTO V/H POSITION sensor, which intelligently remaps the internal voicing parameter depending on whether the enclosure is flying upright or resting as a low-profile wedge stage monitor.
Expert Perspective: The Ultimate Workhorse for Demanding Production Ecosystems
From an audio engineering and professional live production perspective, this active reinforcement cabinet bridges the gap between bulky touring point-source arrays and lightweight mobile audio gear. When rental production groups and professional performers choose to buy the Yamaha DXR10 MKIII, they secure an incredibly versatile asset designed for perpetual road use. The primary target audience covers mobile corporate DJs, touring performance bands, system integrators, and regional AV rental networks. The internal automated feedback suppressor acts via narrow-notch filters, maintaining high systemic gain-before-feedback without degrading the main vocal spectrum. Combined with the signature Duo-Tilt pole mount framework giving an option for a -7 degree down-angle, energy is effortlessly focused toward the audience floor while eliminating problematic rear-wall wall reflections.
