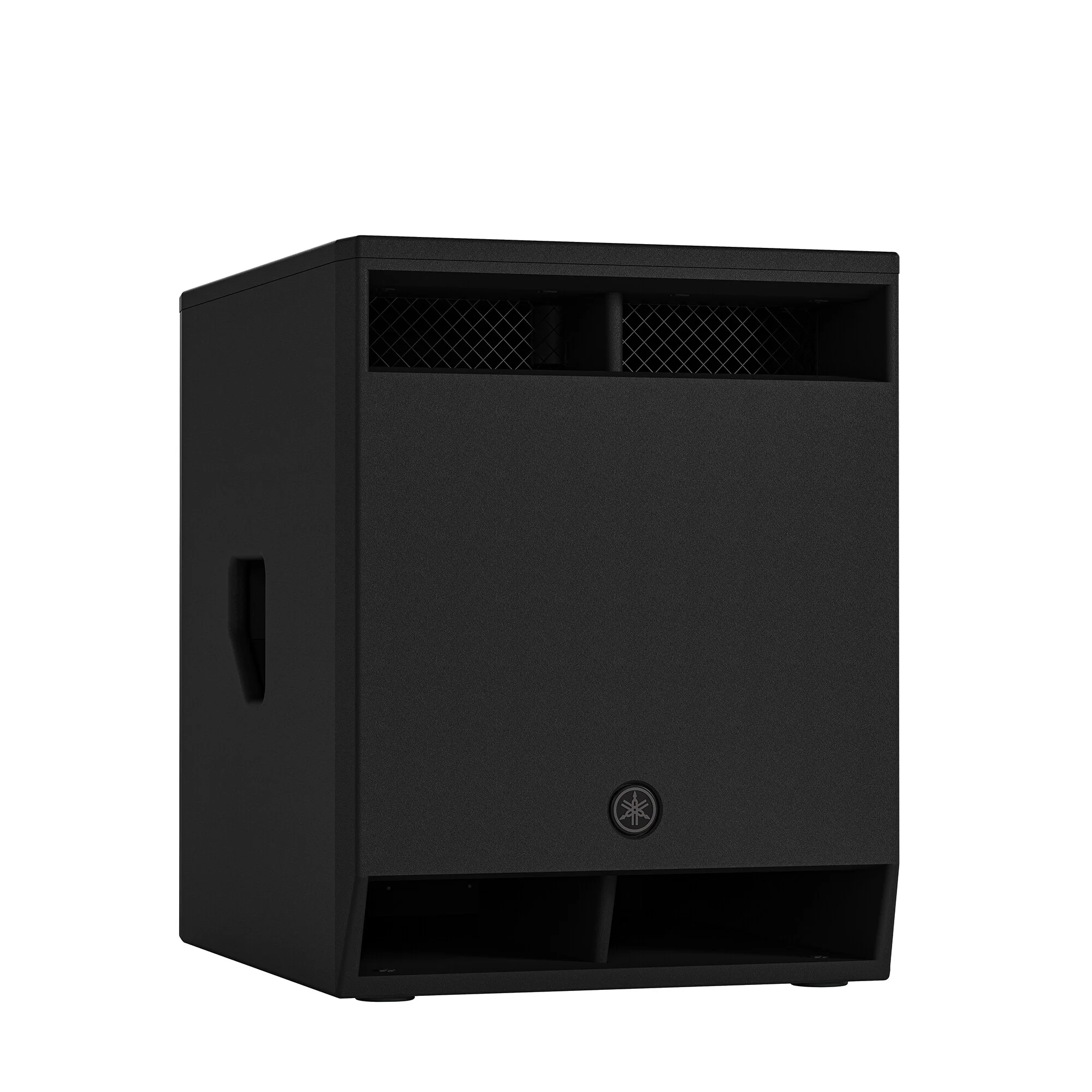

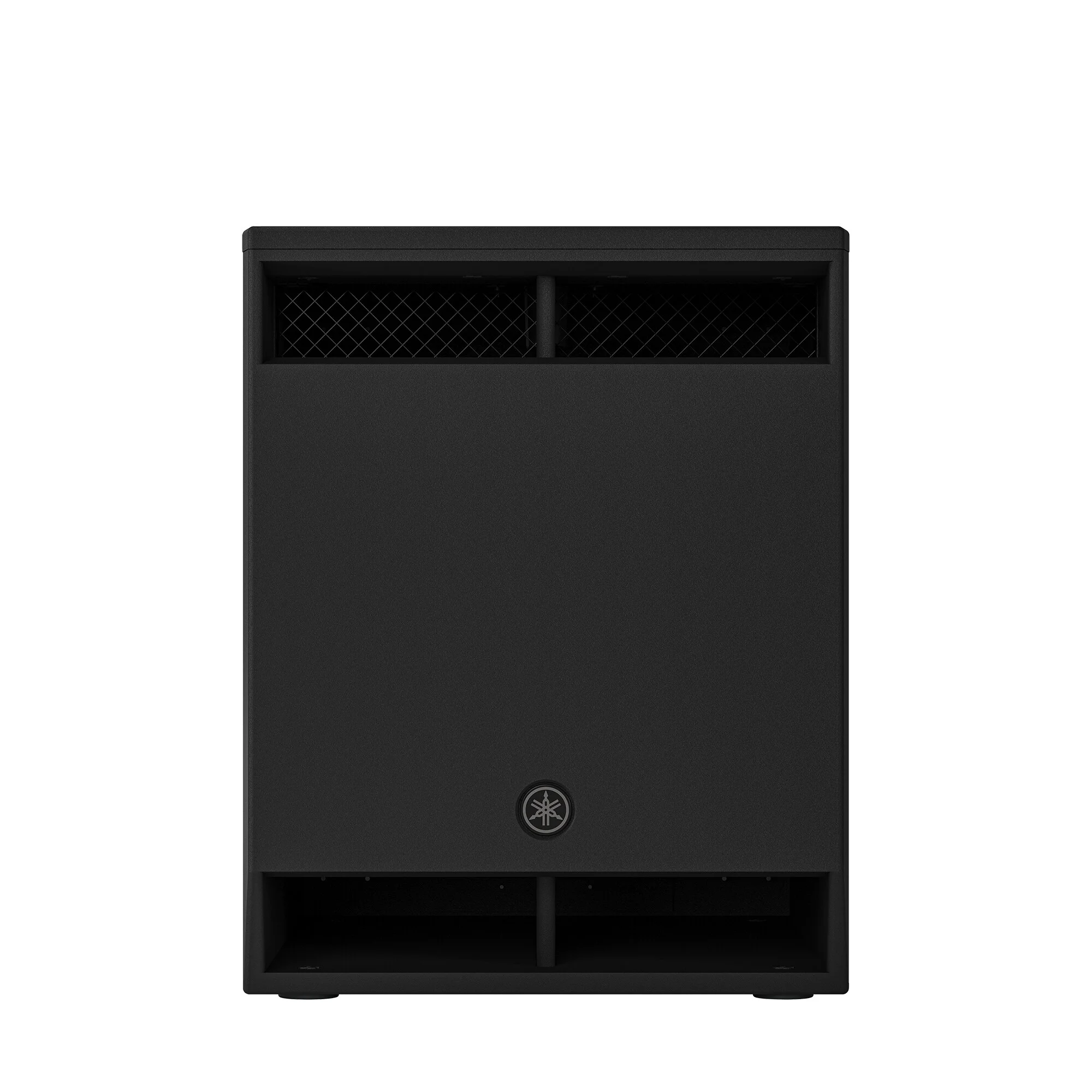

The Yamaha DXS15 MKIII (DXS15mk3) represents the ultimate strike zone of devastating power, acoustic precision, and high flexibility within the acclaimed DXS lineup. Engineered as a highly capable medium-format active bandpass subwoofer, it is driven by a massive 2500-watt Class-D amplifier (1250W RMS) paired with a high-excursion 15" woofer and a heavy-duty 3" voice coil. This powerhouse achieves an impressive maximum sound pressure level of 133 dB SPL. Utilizing advanced D-XSUB digital signal processing, it extends its low-frequency response down to a staggering 35 Hz. Outfitted with 32-bit/96kHz converters, Bluetooth control, and a rugged polyurea-coated plywood cabinet, it represents the definitive bass foundation for live venues and mobile reinforcement systems.
Key Highlights of the Yamaha DXS15 MKIII Subwoofer
- Looking to buy the Yamaha DXS15 MKIII? Secure a formidable low-frequency anchor that balances massive acoustic power with a transport-friendly profile.
- Monstrous Class-D Power: 2500W peak amplifier providing massive dynamic headroom and pristine acoustic clarity at maximum output.
- Intelligent D-XSUB Processing: Smart DSP settings (Normal, Extended LF) engineered to enrich low-end frequencies down to 35 Hz.
- Professional Cardioid Mode: Seamlessly manages stage volume by directing bass energy forward when deploying multi-subwoofer arrays.
- Wireless Control via Bluetooth 5.0: Instantly tune, monitor, and adjust parameters using the dedicated D-Remote application for iOS and Android.
- Tour-Ready Construction: Acoustically optimized plywood enclosure fortified with a resilient black polyurea finish and dual pole sockets (M20 & 35mm).
Technical Specifications and System Parameters
| System Attribute | Technical Specification Details |
|---|---|
| Model Name | Yamaha DXS15 MKIII (Gen 3 Powered Subwoofer) |
| Enclosure Design | Acoustically optimized Bandpass type |
| Transducer Configuration | 15" Low-frequency cone with a heavy-duty 3" voice coil |
| Amplifier Class / Output | Class-D, 2500 Watts Peak / 1250 Watts RMS |
| Frequency Range | 35 Hz – 140 Hz |
| Maximum SPL | 133 dB SPL |
| Digital Signal Processing | D-XSUB (Normal, Extended LF presets), Cardioid Mode, variable HPF (50–118 Hz), variable X-OVER settings |
| AD/DA Conversion | Premium 32-Bit / 96 kHz processing pipeline |
| Wireless Protocol | Bluetooth Version 5.0 (SBC and AAC codec support) |
| Software Integration | D-Remote App control functionality (iOS / Android compatibility) |

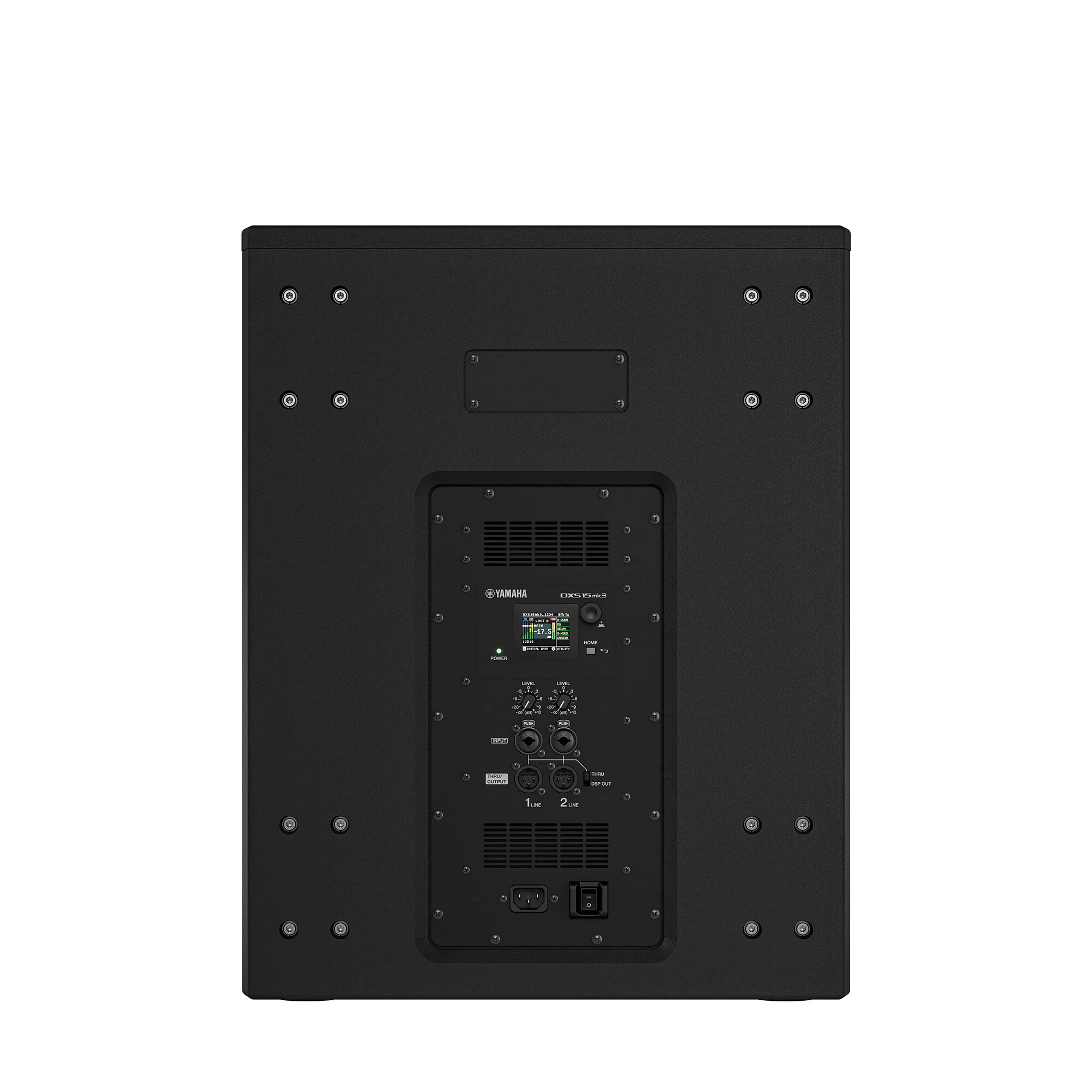

| Audio Input Matrix | 2x XLR/Klinke Combo jacks (balanced routing) |
| Audio Output Matrix | 2x XLR sockets (switchable via Thru / DSP Out parameters) |
| Cabinet Material | Premium structural Plywood (minimized internal resonance) |
| Exterior Coating | Ultra-durable, scratch-resistant Polyurea finish (Color: Black) |
| Cooling System | Internal 5-speed automated cooling fan array |
| Power Configuration | Universal switching mode 100–240 V, 50/60 Hz |
| Power Consumption | 130 W (at 1/8 rated power), 40 W (at Idle state) |
| Rigging / Sockets | Dual mount options: M20 threaded pole mount & 35 mm standard cup |
| Dimensions (W x H x T) | 480 x 611 x 614 mm |
| Net Weight | Approx. 37.0 kg (81.5 lbs) |
Acoustic Precision Engineering Meets Advanced DSP Management
The Yamaha DXS15 MKIII structural design pushes back the boundaries of traditional mid-sized subwoofer cabinets. Its meticulous bandpass internal configuration ensures optimized airflow and suppresses problematic distortion artifacts at high volumes. Driven by studio-grade 32-bit / 96 kHz converters, the internal DSP establishes perfect phase linearity, enabling seamless crossover integration with high-performance top cabinets. Technicians can easily dial in high-pass filtering (HPF) and variable crossover points within moments, while the multi-stage smart fan maintains operational thermal safety even under grueling outdoor festival conditions.
Expert Perspective: The Ultimate Sub-Bass Foundation for Mobile Performers
From an audio engineering and professional touring standpoint, this active sub-bass module bridges the gap between ultra-compact 12-inch units and bulky, heavy 18-inch enclosures. When you decide to buy the Yamaha DXS15 MKIII, you choose an industrial tool engineered for longevity and exceptional structural performance. The target audience encompasses mobile event DJs, touring live bands, permanent club installations, and production rental companies looking for hard-hitting, physical transient responses. The integrated Cardioid array mode is particularly beneficial for small to medium stages, allowing engineers to cancel rearward low-frequency spill, cleaning up the main vocal microphones and monitor mixes simultaneously.
